Product Details

Description



Features:

LITTLE FOOT®Plus Schottky
 Si4830DY Pin Compatible
 PWM Optimized
 100% RgTested




Application

Asymmetrical Buck-Boost DC/DC Converter

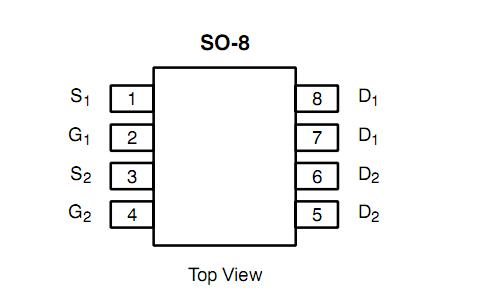

Pinout

Connection Diagram


Specifications

Parameter
Symbol
10 secs
Steady State
Unit
    Channel-1 Channel-2 Channel-1 Channel-2
V
Drain-Source Voltage
VDS
30
Gate-Source Voltage
VGS
±20
 ±12 ±20 ±12
Continuous Drain Current(TJ= 150 )a

 TA= 25
ID
7.5
5.7
A
TA= 70
6.0
4.6
Pulsed Drain Current (10s Pulse Width)
IDM
30
Continuous Source Current (Diode Conduction)a
IS
1.7
0.9
Maximum Power Dissipationa TA= 25
PD
2.0
1.1
W
TA= 70
1.3
0.7
Operating Junction and Storage Temperature Range
TJ, Tstg
−55 to 150
