Si4392DY

Features: ·Extremely Low Qgd WFET Technology for Switching Losses·TrenchFET® Power MOSFET·100% Rg TestedApplication·High-Side DC/DC Conversion − Notebook − ServerPinoutSpecifications Parameter Symbol Limit Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage ...

product image

Si4392DY Picture
See larger image
SeekIC No. : 004490261 Detail

Si4392DY: Features: ·Extremely Low Qgd WFET Technology for Switching Losses·TrenchFET® Power MOSFET·100% Rg TestedApplication·High-Side DC/DC Conversion − Notebook − ServerPinoutSpecifications...

Si4392DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si4392DY
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Extremely Low Qgd WFET Technology for Switching Losses
·TrenchFET® Power MOSFET
·100% Rg Tested


Application

·High-Side DC/DC Conversion
  − Notebook
  − Server

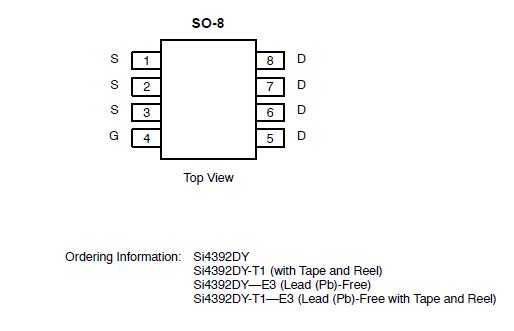

Pinout

Connection Diagram


Specifications

Parameter
Symbol Limit Unit
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID 12.5 A
TA = 70 10
Pulsed Drain Current IDM 50
continuous Source Current (Diode Conduction)a IS 2.7
Maximum Power Dissipationa TA = 25 PD 3.0 W
TA = 70 1.9
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
