Si4403BDY

Features: ·TrenchFET® Power MOSFETSPinoutSpecifications Parameter Symbol 10 secs Steady State Unit Drain-Source Voltage VDS -20 V Gate-Source Voltage VGS ±8 Continuous Drain Current (TJ = 150)a TA = 25 ID -9.9 -7.3 A TA = 70 -7.9 -5.8 Pulsed Drain Current...

product image

Si4403BDY Picture
See larger image
SeekIC No. : 004490266 Detail

Si4403BDY: Features: ·TrenchFET® Power MOSFETSPinoutSpecifications Parameter Symbol 10 secs Steady State Unit Drain-Source Voltage VDS -20 V Gate-Source Voltage VGS ±8 Continuous ...

Si4403BDY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si4403BDY
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·TrenchFET® Power MOSFETS




Pinout

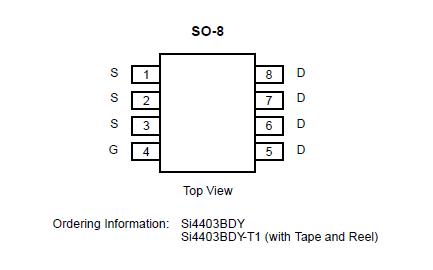

Connection Diagram




Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS -20 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150)a TA = 25 ID -9.9 -7.3 A
TA = 70 -7.9 -5.8
Pulsed Drain Current IDM -30
continuous Source Current (Diode Conduction)a IS -2.3 -1.3
Maximum Power Dissipationa TA = 25 PD 2.5 1.35 W
TA = 70 1.6 0.87
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150





Description

Si4403BDY P-Channel 1.8-V (G-S) MOSFET
