Product Details

Description



Features:

TrenchFET Power MOSFET


Application

Notebook
- Load switch
- Battery switch

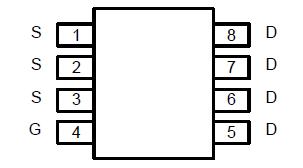

Pinout

Connection Diagram


Specifications

</TABL
Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS -30 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID -13 -9 A
TA = 70°C -10.5 -7.5
Pulsed Drain Current(10 s Pulse Width) IDM -50
Continuous Source Current (Diode Conduction)a IS -2.7 -1.36 A
Maximum Power Dissipationa TA = 25°C PD 3.0 1.5 W
TA = 70°C 1.9 0.95
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150 °C
