SI4482DY

MOSFET 100V 4.6A 2.5W

product image

SI4482DY Picture
See larger image
SeekIC No. : 00166343 Detail

SI4482DY: MOSFET 100V 4.6A 2.5W

SI4482DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4482DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 100 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 4.6 A
Resistance Drain-Source RDS (on) : 60 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : SMD/SMT
Drain-Source Breakdown Voltage : 100 V
Maximum Operating Temperature : + 150 C
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 60 mOhms
Continuous Drain Current : 4.6 A

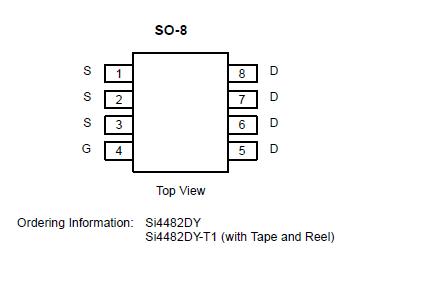

Pinout

Connection Diagram


Specifications

Parameter
Symbol Limit Unit
Drain-Source Voltage VDS 100 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID 4.6 A
TA = 70 3.7
Pulsed Drain Current IDM 40
continuous Source Current (Diode Conduction)a IS 2.1
Maximum Power Dissipationa TA = 25 PD 2.5 W
TA = 70 1.6
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150
