SI4484EY

MOSFET 100V 6.9A 3.8W

product image

SI4484EY Picture
See larger image
SeekIC No. : 00166640 Detail

SI4484EY: MOSFET 100V 6.9A 3.8W

SI4484EY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4484EY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 100 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 6.9 A
Resistance Drain-Source RDS (on) : 34 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-8

Description

Packaging :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : SMD/SMT
Package / Case : SO-8
Drain-Source Breakdown Voltage : 100 V
Maximum Operating Temperature : + 150 C
Resistance Drain-Source RDS (on) : 34 mOhms
Continuous Drain Current : 6.9 A

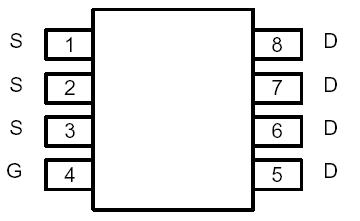

Pinout

Connection Diagram




Specifications

Parameter Limit Unit
Drain-Source Voltage 60 V
Gate-Source Voltage ±20
Continuous Drain Current (TJ = 175)a TA = 25 4.5 A
TA = 70 3.8
Pulsed Drain Current 30
Maximum Power Dissipationa TA = 25 2.4 W
TA = 70 1.7
Operating Junction and Storage Temperature Range -55 to 175





Description

N-Channel 100-V (D-S) MOSFET Si4484EY
