SI4702DY

MOSFET 30V 5.5A 1.25W

product image

SI4702DY Picture
See larger image
SeekIC No. : 00165221 Detail

SI4702DY: MOSFET 30V 5.5A 1.25W

SI4702DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4702DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Continuous Drain Current : 5.5 A Resistance Drain-Source RDS (on) : 24 mOhms
Configuration : Dual Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SOIC-8 Narrow

Description

Gate-Source Breakdown Voltage :
Packaging :
Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Configuration : Dual
Continuous Drain Current : 5.5 A
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 24 mOhms


Pinout

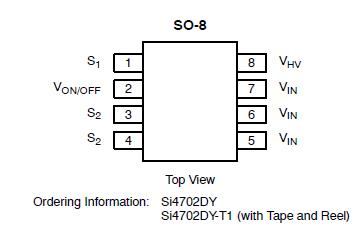

Connection Diagram


Specifications

Parameter Symbol Limit Unit
Input Voltage VIN 30 V
Q2 Gate-Drive Voltage Referenced to S1 or S2 VHV 20
ON/OFF Voltage VON/OFF 8
Load Current Continuousa IL 5.5 A
Pulsed b ±20
Continuous Intrinsic Diode Conductiona IS -1.15
Maximum Power Dissipationa PD 1.25 W
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150
ESD Rating, MIL-STD-883D Human Body Model (100 pF, 1500) ESD 3 kV
