Product Details

Description



Features:

· TrenchFET® Power MOSFETS




Application

· Load Switch
· Battery Switch

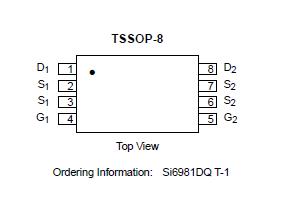

Pinout

Connection Diagram




Specifications

Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS -20 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150)a TA = 25 ID -4.8 -4.1 A
TA = 70 -3.9 -3.2
Pulsed Drain Current IDM -30
Continuous Source Current (Diode Conduction)a IS -0.1 -0.7
Maximum Power Dissipationa TA = 25 PD 1.14 0.83 W
TA = 70 0.73 0.53
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150 /W





Description

Dual P-Channel 20-V (D-S) MOSFET Si6981DQ
