SI9241AEY

Operating Power Supply Range 6 V V_BAT 36 V
Reverse Battery Protection Down to V_BAT −24 V
Standby Mode With Very Low Current Consumption IBAT(SB) = 1 A @ VDD = 0.5 V
Low Quiescent Current in OFF Condition IBAT = 120 A and IDD 10 A
ISO 9141 Compatible
Overtemperature Shutdown Function For K Output
Defined K Output OFF for Open GND
Defined Receive Output Status for Open K Input
Defined K Output OFF for TX Input Open
Open Drain Fault Output
2-kV ESD
Typical Transmit Speeds of 200 kBaud

The Si9241AEY is a monolithic bus transceiver designed to provide bidirectional serial communication in automotive diagnostic applications.

The device incorporates protection against overvoltages and short circuits to VBAT. The transceiver pin is protected and can be driven beyond the VBAT voltage.The Si9241AEY is built on the Vishay Siliconix BiC/DMOS process. An epitaxial layer prevents latchup.

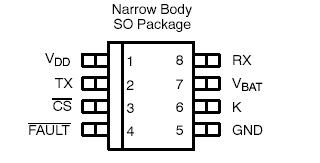

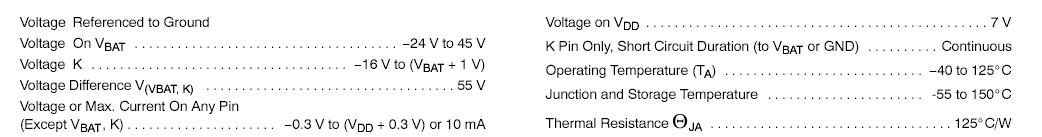

The RX output is capable of driving CMOS or 1 * LSTTL load.The Si9241AEY is available in a space efficient 8-pin SO package. It operates reliably over the automotive temperature range (−40 to 125). The Si9241AEY is available in both standard and lead (Pb)-free packages.
