General Description
Si9707DY General Description
The Si9707DY offers an integrated solution for dual PC Card power interfaces that require only VCC switching. This part is ideal for systems that operate at 5 V and provide VPP from the main supply, or from a dedicated Flash RAM 12-V supply.
The Si9707DY operates off the 5-V supply with built-in level shifting. The VCC outputs function independently and internal logic protects each slot against a control logic error that would short 5 V to the 3.3-V supply. This protection logic also allows the Si9707DY to be configured for positive or negative control logic for compatibility with a variety of PC Card controllers. These control inputs are CMOS logic compatible and can be driven to 3.3 V or 5 V.
The PC Card Dual Interface Switch is available in a SO-16 narrow-body package and is rated over the industrial temperature range of -40 to 85°C.
Si9707DY Maximum Ratings
Voltages Referenced to Ground
+5 VINA, +5 VINB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
+3.3 VINA, +3.3 VINB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
S1A and S2A, S1B, S2B (CMOS Inputs) . . . . . . . . . . . . . . . . . . . . . 7 V
All Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V
IOUT VCCAa, IOUT VCCBb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 A
PD Maxc: (TA= 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65 W
(TA = 85°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65 W
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Thermal Ratings: RQJAc . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60°C/W
Notes
a. Pins 5, 6 connected together externally.
b. Pins 3, 4 connected together externally.
c. Mounted on 1-IN2, FR4 PC Board.
+5 VINA, +5 VINB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
+3.3 VINA, +3.3 VINB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
S1A and S2A, S1B, S2B (CMOS Inputs) . . . . . . . . . . . . . . . . . . . . . 7 V
All Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V
IOUT VCCAa, IOUT VCCBb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 A
PD Maxc: (TA= 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.65 W
(TA = 85°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65 W
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Thermal Ratings: RQJAc . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60°C/W
Notes
a. Pins 5, 6 connected together externally.
b. Pins 3, 4 connected together externally.
c. Mounted on 1-IN2, FR4 PC Board.
Si9707DY Features
• Single SO-16 Package
• CMOS Logic Compatible Inputs
• Smart Switching
• Slow VCC Ramp Times
• Extremely Low RON
• Supports Dual PC Card Slots
• Reverse Blocking Switches
• Low Power Consumption
• Safe Power-Up
• CMOS Logic Compatible Inputs
• Smart Switching
• Slow VCC Ramp Times
• Extremely Low RON
• Supports Dual PC Card Slots
• Reverse Blocking Switches
• Low Power Consumption
• Safe Power-Up

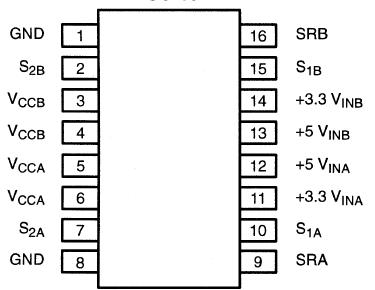

Si9707DY Connection Diagram
Si9707DY
PDF/DataSheet Download
- Datasheet: Si9707DY
- File Size: 118972 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
