Si9712 General Description
Si9712 Maximum Ratings
Voltages Referenced to Ground
+12 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 15 V
+5 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 7 V
+3.3 VINC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
S1 through S4 (CMOS Inputs) . . . . . . . . . . . . . . . . . . . 7 V
IOUT VPPa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 300 mA
All Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. −0.5 V
IOUT VCCb . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 4 A
PD Max: (TA = 25) . . . . . . . . . . . . . . . . . . .. . . .. .. 2.5 W
(TA = 85) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 1.0 W
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 125
Thermal Rating-RJA . . . . . . . . . . . . . . . . . . . .. . . . 40 /W
Si9712 Features
·Programmable VCC Ramp
·Smart Switching
·12-V Sleepmode Compatible
·Extremely Low RON
·Reverse Blocking Switches
·VPP Programmable to 0, 12-V or VCC
·Safe Power-Up
·Low Power Consumption
· PC Card 3-V/5-V Compatible
·Logic Compatible Inputs
·Single SO-16 Package

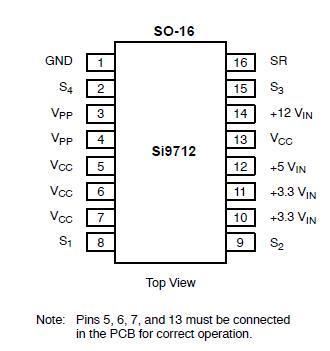

Si9712 Connection Diagram
