Part Number: Si9717



MFG: SILICONX

Package Cooled: SOP3.9

D/C: 08+

Description: The is a reverse blocking switch for battery disconnect applications. It is an integrated solution for multiple battery...


Urgent Purchase

Si9717 General Description


The is a reverse blocking switch for battery disconnect applications. It is an integrated solution for multiple battery technology designs or designs that require isolation from the power bus during charging. The is available in a 16-pin SOIC package and is rated for the commercial temperature range of 0 to 70.

The Si9717 is available in both standard and lead (Pb)-free packages.

Si9717 Maximum Ratings

Voltage Referenced to GND
VA, VB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 to 20 V
VIN  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .−0.3 to 10 V
VENABLE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.3 to 10 V
Storage Temperature  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . . . .−65 to 125
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 W

Si9717 Features

·6- to 18-V Operation
·Separate Logic Voltage Input
·Undervoltage Lockout (UVL) @ VL = 3 V
·Shutdown Control Capability
·Safe Power Down

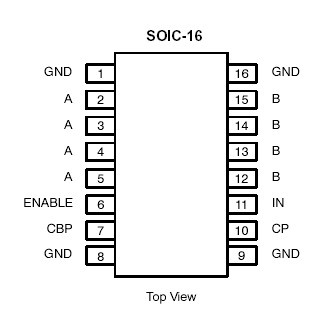

Si9717 Connection Diagram

Si9717 Connection Diagram
