Purchase Si9750, In-stock Si9750 From SeekIC.
MFG:Vishay D/C:08+
Part Number: Si9750
MFG: Vishay
D/C: 08+
Description: The Si9750 current limit MOSFET interface IC is designed to operate between a power source and a load ...
- Table of contents:
Si9750
-
Suppliers
DataSheet
General Description
Si9750 General Description
The Si9750 current limit MOSFET interface IC is designed to operate between a power source and a load using a low onresistance power MOSFET with a sense terminal or in conjunction with a low ohmic sense resistor. The Si9750 current limiter prevents source and load transients during hot swap and power-on with programmable dv/dt and di/dt. Both turn-on and steady-state current limits can be individually programmed, providing protection against short circuits. Power on RESET and logic controls allow complete microprocessor interfacing. The RESET function of the Si9750 is industry-standard with full programmability.
The Si9750 is available in a 16-pin SOIC package and is rated over the commercial temperature range (0 to 70°C).
Si9750 Maximum Ratings
Voltages Referenced to Ground
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V
Boost Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 V
Inputs/Outputs
(except Gate, Boost and VRST) . . . . . . . . . . . . . . -0.3 to VDD + 0.3 V
VRST Input Current (0 < VRST < 15 V) . . . . . . . . . . . . . . . . . . .20 mA
Inputs/Outputs Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
RESET Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 mA
STATUS Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 mA
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 125°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Power Dissipation (package)a
16-Pin SOICb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900 mW
Thermal Impedance (QJA) . . . . . . . . . . . . . . . . . . . . . . . . . . 140°C/W
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 7.2 mW/°C above 25°C.
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V
Boost Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 V
Inputs/Outputs
(except Gate, Boost and VRST) . . . . . . . . . . . . . . -0.3 to VDD + 0.3 V
VRST Input Current (0 < VRST < 15 V) . . . . . . . . . . . . . . . . . . .20 mA
Inputs/Outputs Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 mA
RESET Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 mA
STATUS Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 mA
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 125°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Power Dissipation (package)a
16-Pin SOICb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900 mW
Thermal Impedance (QJA) . . . . . . . . . . . . . . . . . . . . . . . . . . 140°C/W
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 7.2 mW/°C above 25°C.
Si9750 Features
• 2.9- to 13-V Input Operating Range
• MicroprocessorRESET
• Integrated High-Side Driver for N-Channel MOSFET
• Programmable di/dt Current
• MicroprocessorRESET
• Integrated High-Side Driver for N-Channel MOSFET
• Programmable di/dt Current

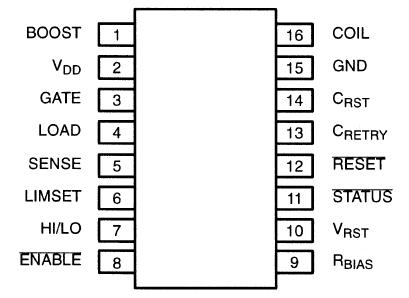

Si9750 Connection Diagram
SI9750
