SI9933BDY

MOSFET DUAL PCH POWER TRENCH MO

product image

SI9933BDY Picture
See larger image
SeekIC No. : 00160816 Detail

SI9933BDY: MOSFET DUAL PCH POWER TRENCH MO

SI9933BDY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI9933BDY
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : - 20 V
Continuous Drain Current : 3.4 A Configuration : Dual
Mounting Style : SMD/SMT Package / Case : SOIC-8 Narrow
Packaging : Reel

Description

Gate-Source Breakdown Voltage :
Resistance Drain-Source RDS (on) :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Drain-Source Breakdown Voltage : - 20 V
Configuration : Dual
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 3.4 A


Pinout

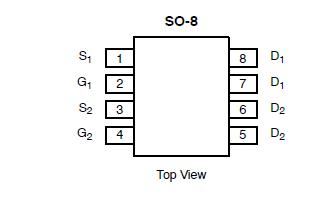

Connection Diagram


Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS −20 V
Gate-Source Voltage VGS ±12
Continuous Drain Current (TJ = 150)a TA = 25 ID −4.7 −3.6 A
TA = 70 −3.8 −2.8
Pulsed Drain Current IDM −20
continuous Source Current (Diode Conduction)a IS −1.7 −0.9
Maximum Power Dissipationa TA = 25 PD 2.0 1.1 W
TA = 70 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
