Motor / Motion / Ignition Controllers & Drivers Half Bridge Driver
SI9978DW: Motor / Motion / Ignition Controllers & Drivers Half Bridge Driver
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Type : | Configurable H-Bridge Driver | Operating Supply Voltage : | - 0.3 V to + 50 V | ||
Supply Current : | 5 mA | Mounting Style : | SMD/SMT | ||
Package / Case : | SO-24 | Packaging : | Tube |
The Si9978DW is an integrated driver for an n-channel MOSFET H-bridge. The mode control of Si9978DW allows operation as either a full H-bridge driver or as two independent half-bridges. The DIR/PWM input configuration allows easy implementation of either sign/magnitude or anti-phase PWM drive schemes for full H-bridges. Schmitt triggers on the inputs provide logic signal compatibility and hysteresis for increased noise immunity. An internal low-voltage regulator allows the device to be powered directly from a system supply of 20 to 40 volts. All n-channel gates are driven directly from low-impedance outputs. The addition of one external capacitor per half-bridge allows internal circuitry to level shift both the power supply and logic signal for the high-side n-channel gate drives. Internal charge pumps replace leakage current lost in the high-side driver circuits to provide "static" (dc) operation in any output condition. Protection features include an undervoltage lockout, cross-conduction prevention logic, and overcurrent monitors.

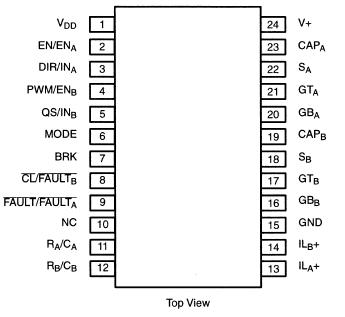

The Si9978DW is available in the 24-pin wide-body SOIC (surface mount) package, specified to operate over the industrial (-40 to +85°C) temperature range.
