SI9987CY-T1

Motor / Motion / Ignition Controllers & Drivers Buffer Bridge Driver

product image

SI9987CY-T1 Picture
See larger image
SeekIC No. : 00533900 Detail

SI9987CY-T1: Motor / Motion / Ignition Controllers & Drivers Buffer Bridge Driver

SI9987CY-T1 Data Sheet

floor Price/Ceiling Price

US $ 1.61~1.62 / Piece | Get Latest Price
Part Number:
SI9987CY-T1
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 0~1910
  • 1910~2500
  • Unit Price
  • $1.62
  • $1.61
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : H-Bridge Operating Supply Voltage : 3.8 V to 13.2 V
Supply Current : 125 mA Mounting Style : SMD/SMT
Package / Case : SO-8 Packaging : Reel

Description

Product :
Mounting Style : SMD/SMT
Type : H-Bridge
Packaging : Reel
Operating Supply Voltage : 3.8 V to 13.2 V
Package / Case : SO-8
Supply Current : 125 mA


Features:

· 1.0-A H-Bridge
· 500-kHz Switching Rate
· Shoot-Through Limited
· TTL Compatible Inputs
· 3.8- to 13.2-V Operating Range
· Surface Mount Packaging


Application

· VCM Driver
· Brushed Motor Driver
· Stepper Motor Driver
· Power Converter
· Optical Disk Drives
· Power Supplies
· High Performance Servo


Pinout

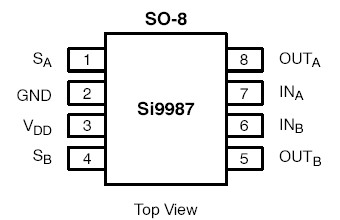

Connection Diagram


Specifications

Voltage on any pin with respect to ground
Voltage on pins 5, 8 with respect to GND
Voltage on pins 1, 4
Maximum VDD
Peak Output Current
Storage Temperature
Maximum Junction Temperature (TJ)
Power Dissipationb
JA
Continuous IOUT Current (TJ = 135)c
TA = 25
TA = 70
TA = 85
Operating Temperature Range
Si9987CY
Si9987DY
−0.3 V to VDD +0.3 V
−1 V to VDD +1 V
−0.3 V to GND +1 V
15 V
1.5 A
−65 to 150
150
1 W
100/W

±1.02 A
±0.75 A
±0.65 A

0 to 70
−40 to 85
Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 10 mW/ above 25.
c. TJ = TA + (PD x JA), PD = Power Dissipation .


Description

The Si9987 is an integrated, buffered H-bridge with TTL compatible inputs and the capability of delivering a continuous 1.0 A @ VDD = 5.0 V (room temperature) at switching rates up to 500 kHz. Internal logic prevents the upper and lower outputs of either half-bridge from being turned on simultaneously. Unique input codes allow both outputs to be forced low (for braking) or forced to a high impedance level.

The Si9987 is available in an 8-Pin SOIC package, specified to operate over a voltage range of 3.8 V to 13.2 V, and the commercial temperature range of 0 to 70 (C suffix) and −40 to 85 (D suffix). The Si9987 is available in lead free.
