SiI 1160

Features: • Scaleable Bandwidth: 25-165 MHz (VGA to UXGA)• Backwards compatible replacement for the SiI 160 transmitter• High Skew Inter pair Tolerance: 1 full input clock cycle (6ns at 165 MHz)• Flexible interface: single or dual pixel input at up to 48 bits• Cable D...

product image

SiI 1160 Picture
See larger image
SeekIC No. : 004491205 Detail

SiI 1160: Features: • Scaleable Bandwidth: 25-165 MHz (VGA to UXGA)• Backwards compatible replacement for the SiI 160 transmitter• High Skew Inter pair Tolerance: 1 full input clock cycle (6...

SiI 1160 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SiI 1160
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Scaleable Bandwidth: 25-165 MHz (VGA to UXGA)
• Backwards compatible replacement for the SiI 160 transmitter
• High Skew Inter pair Tolerance: 1 full input clock cycle (6ns at 165 MHz)
• Flexible interface: single or dual pixel input at up to 48 bits
• Cable Distance Support: over 20m DVI cable
• Fully DVI 1.0 compliant
• Advanced on-chip input clock jitter filter to ensure clean output to receiver
• Available in Universal package for both standard and Pb-Free (environmentally-friendly) applications


Application

To obtain the most updated Application Notes and other useful information for your design, please visit the Silicon
Image web site at www.siliconimage.com or contact your local Silicon Image sales office.


Pinout

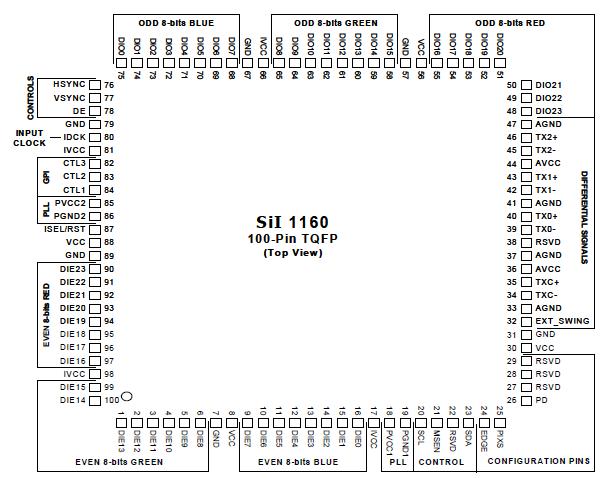

Connection Diagram


Description

The SiI 1160 transmitter uses PanelLink Digital technology to support displays up to UXGA resolution. It supports up to true-color panels (24 bits per pixel, 16.7M colors) in 1 or 2 pixels-per-clock mode.

All PanelLink products are designed on scaleable CMOS architecture to support future performance requirements while maintaining the same logical interface. The SiI 1160 transmitter follows this strategy by offering a pin-compatible upgrade to the SiI 160 transmitter that also brings longer cable support.

SiI 1160 PanelLink Digital technology simplifies the PC & display interface by resolving many of the system level issues associated with high-speed digital design, providing the system designer with a digital solution that is quicker to market and lower in cost.
