SiP41109

Features: · PWM With Tri-State Enable· 12-V Low-Side Gate Drive (SiP41109)· 8-V Low-Side Gate Drive (SiP41110)· Undervoltage Lockout· Internal Bootstrap Diode· Switching Frequency Up to 1 MHz· 30-ns Max Propagation Delay· Drive MOSFETs In 5- to 48-V Systems· Adaptive Shoot-Through ProtectionApplic...

product image

SiP41109 Picture
See larger image
SeekIC No. : 004491469 Detail

SiP41109: Features: · PWM With Tri-State Enable· 12-V Low-Side Gate Drive (SiP41109)· 8-V Low-Side Gate Drive (SiP41110)· Undervoltage Lockout· Internal Bootstrap Diode· Switching Frequency Up to 1 MHz· 30-ns...

SiP41109 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SiP41109
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· PWM With Tri-State Enable
· 12-V Low-Side Gate Drive (SiP41109)
· 8-V Low-Side Gate Drive (SiP41110)
· Undervoltage Lockout
· Internal Bootstrap Diode
· Switching Frequency Up to 1 MHz
· 30-ns Max Propagation Delay
· Drive MOSFETs In 5- to 48-V Systems
· Adaptive Shoot-Through Protection




Application

· Multi-Phase DC/DC Conversion
· High Current Low Voltage DC/DC Converters
· High Frequency DC/DC Converters
· Mobile and Desktop Computer DC/DC Converters
· Core Voltage Supplies for PC Micro-Processors




Pinout

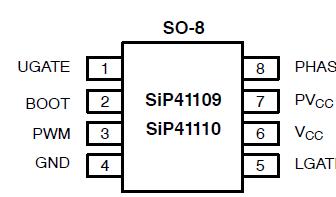

Connection Diagram




Specifications

V CC, PVCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 to 15 V
BOOT, PHASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 to 55 V
BOOT to PHASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 to 15 V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to 150
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Power Dissipationa
SO-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770 mW
Thermal Impedance (JA)b
SO-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130/W

Notes
a. Device mounted with all leads soldered or welded to PC board.
b. Derate 7.7 mW/




Description

The SiP41109 and SiP41110 are high-speed half-bridge MOSFET drivers for use in high frequency, high current, multiphase dc-to-dc synchronous rectifier buck power supplies. They are designed to operate at switching frequencies up to 1 MHz. The high-side driver is bootstrapped to allow driving n-channel MOSFETs.

They feature adaptive shoot-through protection to prevent simultaneous conduction of the external MOSFETs. There are two options available for the voltage of the high-side and low-side drivers. In the SiP41109, the regulator supplies gate drive voltage to the high-side driver and VCC supplies the low-side driver. in the SiP41110, the regulator supplies the high- and low-side gate drive voltage.

The SiP41109 and SiP41110 are assembled in a lead (Pb)-free 8-pin SOIC package for operation over the industrial operating range (−40 to 85).
