Part Number: SiS5595
MFG: SIS
D/C: 09+
Description: SiS5595 is a highly integrated system I/O that constitutes a high performance, rich featured, yet glue...
- Table of contents:
SiS5595
-
Suppliers
DataSheet
General Description
SiS5595 General Description
SiS5595 is a highly integrated system I/O that constitutes a high performance, rich featured, yet glueless solution for both Pentium and Pentium II systems.
The SiS5595 PCI system I/O integrates the PCI-to-ISA bridge with the DDMA and PC/PCI DMA, Serial IRQ capability, the ACPI/Legacy PMU, the Data Acquisition Interface, the Universal Serial Bus host/hub interface, and the ISA bus interface, which contains the ISA bus controller, the DMA controllers, the interrupt controllers, and the Timers. It also integrates the Keyboard controller, and the Real Time Clock (RTC). The built-in USB controller, which is fully compliant to OHCI (Open Host Controller Interface), provides two USB ports capable of running full/low speed USB devices. The Data Acquisition Interface offers the ability of monitoring and reporting the environmental condition of the PC. It could monitor 5 positive analog voltage inputs, 2 Fan speed inputs, and one external temperature inputs. It also integrates the automatic power control logic to control the power ON/OFF for ATX power supply. In addition, SiS5595 also integrates the thermal detection and frequency ratio control logic for Pentium II CPU.
SiS5595 Features
` Integrated PCI-to-ISA Bridge
- Translates PCI Bus Cycles into ISA Bus Cycles.
- Translates ISA Master or DMA Cycles into PCI Bus Cycles.
- Provides a Dword Post Buffer for PCI to ISA Memory cycles.
- Two 32 bit Prefetch/Post Buffers Enhance the DMA and ISA Master Performance.
- Fully Compliant to PCI 2.1.
` Supports both Desktop and Mobile Advanced Power Management Logic
- Meets ACPI 1.0 Requirements.
- Supports Both ACPI and Legacy PMU.
- Supports Suspend to RAM.
- Supports Suspend to Hard Disk.
- Optionally Tri-state ISA bus in low power state.
- Supports Battery Management and LB/LLB/AC Indicator.
- Supports CPU's SMM Mode Interface.
- Supports CPU Stop Clock.
- Supports Power Button of ACPI.
- Supports three system timers and SMI# watchdog timer.
- Supports Automatic Power Control.
- Supports Modem Ring-in, RTC Alarm Wake up.
- Supports Thermal Detection.
- Supports GPIOs, and GPOs for External Devices Control.
- Supports Programmable Chip Select.
- Supports PCI Bus Power Management Interface Spec. 1.0 .
- Supports Pentium II Sleep State.
` Enhanced DMA Functions
- 8-, 16- bit DMA Data Transfer.
- Two 8237A Compatible DMA Controllers with Seven Independent Programmable Channels.
- Provide the Readability of the two 8237 Associated Registers.
- Support Distributed DMA.
- Support PC/PCI DMA.
- Per DMA channel programmable in legacy, DDMA or PC/PCI DMA mode operation.
` Integrated Two 8259A Interrupt Controllers
- 14 Independently Programmable Channels for Level- or Edge-triggered Interrupts.
- Provide the Readability of the two 8259A Associated Registers.
- Support Serial IRQ.
- Support the Reroutability for the PCI Interrupts.
` Three Programmable 16-bit Counters compatible with 8254
- System Timer Interrupt.
- Generate Refresh Request.
- Speaker Tone Output.
- Provide the Readability of the 8254 Associated Registers.
` Integrated Keyboard Controller
- Hardwired Logic Provides Instant Response.
- Supports PS/2 Mouse Interface.
- Supports Keyboard Password Security or Hot Key Power On Function.
- Supports Hot Key "Sleep" Function.
- Programmable Enable and Disable for Keyboard Controller and PS/2 Mouse.
` Integrated Real Time Clock(RTC) with 256B CMOS SRAM
- Supports ACPI Day of Month Alarm/Month Alarm.
- Supports various Power Up events, such as Button Up, Alarm Up, Ring Up, GPIO5/PME0# Up, GPIO10/ PME1# Up, Password Security Up, and Hotkey Up.
- Supports various Power Down Events, like Software Power-down, Button Powerdown, and ACPI S3 Power-down.
- Supports Power Supply '98.
- Provides RTC year 2000 solution.
` Integrated Frequency Ratio Control Logic for Pentium II CPU
` Universal Serial Bus Host Controller
- Open HCI Host Controller with Root Hub.
- Two USB Ports.
- Supports Legacy Devices.
- Supports Over Current Detection.
` Integrated Hardware Monitor Logic
- Up to 5 Positive Voltage Monitoring Inputs.
- Two Fan Speed Monitoring Inputs.
- One Temperature Sensings.
- Supports thermister- or diode- temperature sensing for Pentium II CPU.
- Threshold Comparison of all Monitored Values.
` Supports I2C Serial Bus/ SMBUS
` Supports 2MB Flash ROM Interface
` 208 pins PQFP Package
` 5V CMOS Technology
- Translates PCI Bus Cycles into ISA Bus Cycles.
- Translates ISA Master or DMA Cycles into PCI Bus Cycles.
- Provides a Dword Post Buffer for PCI to ISA Memory cycles.
- Two 32 bit Prefetch/Post Buffers Enhance the DMA and ISA Master Performance.
- Fully Compliant to PCI 2.1.
` Supports both Desktop and Mobile Advanced Power Management Logic
- Meets ACPI 1.0 Requirements.
- Supports Both ACPI and Legacy PMU.
- Supports Suspend to RAM.
- Supports Suspend to Hard Disk.
- Optionally Tri-state ISA bus in low power state.
- Supports Battery Management and LB/LLB/AC Indicator.
- Supports CPU's SMM Mode Interface.
- Supports CPU Stop Clock.
- Supports Power Button of ACPI.
- Supports three system timers and SMI# watchdog timer.
- Supports Automatic Power Control.
- Supports Modem Ring-in, RTC Alarm Wake up.
- Supports Thermal Detection.
- Supports GPIOs, and GPOs for External Devices Control.
- Supports Programmable Chip Select.
- Supports PCI Bus Power Management Interface Spec. 1.0 .
- Supports Pentium II Sleep State.
` Enhanced DMA Functions
- 8-, 16- bit DMA Data Transfer.
- Two 8237A Compatible DMA Controllers with Seven Independent Programmable Channels.
- Provide the Readability of the two 8237 Associated Registers.
- Support Distributed DMA.
- Support PC/PCI DMA.
- Per DMA channel programmable in legacy, DDMA or PC/PCI DMA mode operation.
` Integrated Two 8259A Interrupt Controllers
- 14 Independently Programmable Channels for Level- or Edge-triggered Interrupts.
- Provide the Readability of the two 8259A Associated Registers.
- Support Serial IRQ.
- Support the Reroutability for the PCI Interrupts.
` Three Programmable 16-bit Counters compatible with 8254
- System Timer Interrupt.
- Generate Refresh Request.
- Speaker Tone Output.
- Provide the Readability of the 8254 Associated Registers.
` Integrated Keyboard Controller
- Hardwired Logic Provides Instant Response.
- Supports PS/2 Mouse Interface.
- Supports Keyboard Password Security or Hot Key Power On Function.
- Supports Hot Key "Sleep" Function.
- Programmable Enable and Disable for Keyboard Controller and PS/2 Mouse.
` Integrated Real Time Clock(RTC) with 256B CMOS SRAM
- Supports ACPI Day of Month Alarm/Month Alarm.
- Supports various Power Up events, such as Button Up, Alarm Up, Ring Up, GPIO5/PME0# Up, GPIO10/ PME1# Up, Password Security Up, and Hotkey Up.
- Supports various Power Down Events, like Software Power-down, Button Powerdown, and ACPI S3 Power-down.
- Supports Power Supply '98.
- Provides RTC year 2000 solution.
` Integrated Frequency Ratio Control Logic for Pentium II CPU
` Universal Serial Bus Host Controller
- Open HCI Host Controller with Root Hub.
- Two USB Ports.
- Supports Legacy Devices.
- Supports Over Current Detection.
` Integrated Hardware Monitor Logic
- Up to 5 Positive Voltage Monitoring Inputs.
- Two Fan Speed Monitoring Inputs.
- One Temperature Sensings.
- Supports thermister- or diode- temperature sensing for Pentium II CPU.
- Threshold Comparison of all Monitored Values.
` Supports I2C Serial Bus/ SMBUS
` Supports 2MB Flash ROM Interface
` 208 pins PQFP Package
` 5V CMOS Technology

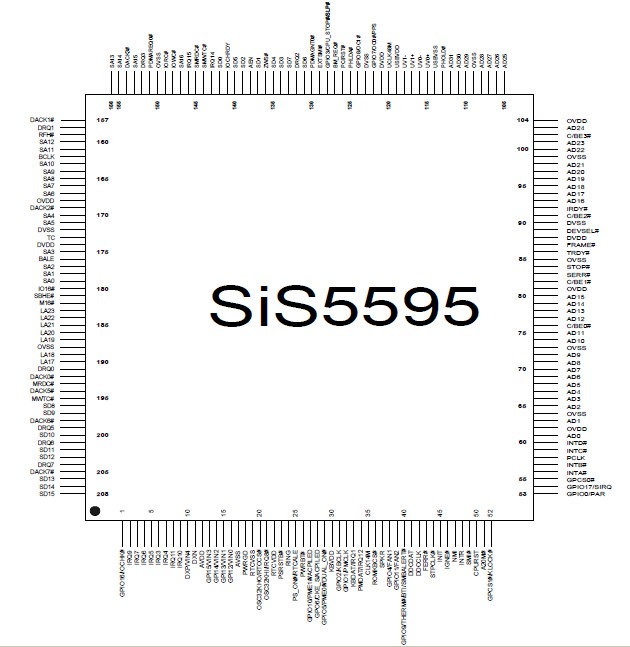

SiS5595 Connection Diagram
