T0980 General Description


The T0980 is a monolithic SiGe transmit/ receive front end IC with power amplifier & low noise amplifier.

Electrostatic sensitive device. Observe precautions for handling.

T0980 Maximum Ratings

Parameter Symbol Min. Max. Unit
Supply voltage PA, TX     Pins 1, 2, 9 and 14 Vs_PA   4.5 V
Supply voltage LNA, RX  Pin 10 Vs_LNA   2.8 V
Junction temperature Tjmax   150
Storage temperature Tstg 55 +125

T0980 Features

High power added efficient power amplifier (Pout typ. 29 dBm)
Controlled output power
Low noise preamplifier (NF typ. 1.7 dB)
Few external components
PSSO16 plastic package with down set paddle

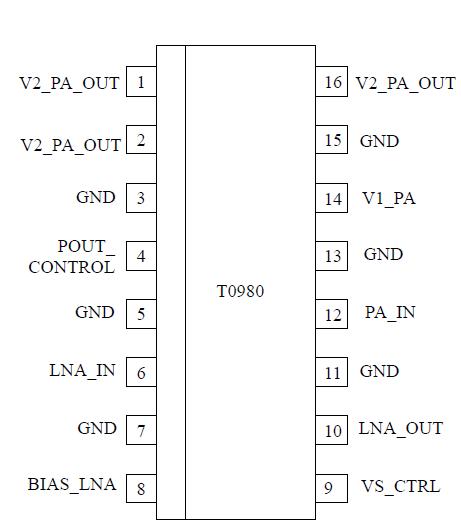

T0980 Connection Diagram

T0980 Connection Diagram

T0980 datasheet

T0980
PDF/DataSheet Download
