T15M256A

Features: ` Access time: 35ns/70ns` Low power consumption : Active 200 mW(typ.)` Low operating current : 50mA` Single + 5 power supply` Fully static operation No clock or refreshing required` All inputs and outputs directly TTL compatible` Common I/O capability` Available packages : 28-pin 300 mi...

product image

T15M256A Picture
See larger image
SeekIC No. : 004510948 Detail

T15M256A: Features: ` Access time: 35ns/70ns` Low power consumption : Active 200 mW(typ.)` Low operating current : 50mA` Single + 5 power supply` Fully static operation No clock or refreshing required` All i...

T15M256A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T15M256A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Access time: 35ns/70ns
` Low power consumption : Active 200 mW(typ.)
` Low operating current : 50mA
` Single + 5 power supply
` Fully static operation No clock or refreshing required
` All inputs and outputs directly TTL compatible
` Common I/O capability
` Available packages : 28-pin 300 mil SOJ, 28-pin SOP, TSOP-I (forward type ).
` Output enable (OE) available for very fast access
` Mix-mode Outputs

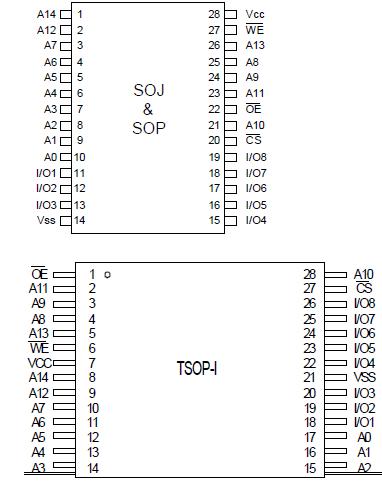

Pinout

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Supply Voltage to Vss Potential
-0.5 to 6
V
Inputs to Vss Potential
-0.5 to Vcc+0.5
V
Power Dissipation
0.5
W
Storage Temperature
-60 to +150
mA



Description

The T15M256A is a high speed, low power CMOS static RAM organized as 32,768 x 8 bits that operates on a single 5-volt power supply. This device is packaged in standard 28-pin 300 mil SOJ ,28-pin SOP, TSOP-I forward.
