T15N1024A

Features: • Low-power consumption- Active: 40mA at 55ns (Max.)- CMOS Stand-by: 10uA (Max.)• 55/70/100 ns access time• Equal access and cycle time• Single +2.4V to 3.6V Power Supply• TTL compatible , Tri-state output• Common I/O capability• Automatic power-...

product image

T15N1024A Picture
See larger image
SeekIC No. : 004510951 Detail

T15N1024A: Features: • Low-power consumption- Active: 40mA at 55ns (Max.)- CMOS Stand-by: 10uA (Max.)• 55/70/100 ns access time• Equal access and cycle time• Single +2.4V to 3.6V Power ...

T15N1024A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T15N1024A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-power consumption
- Active: 40mA at 55ns (Max.)
- CMOS Stand-by: 10uA (Max.)
• 55/70/100 ns access time
• Equal access and cycle time
• Single +2.4V to 3.6V Power Supply
• TTL compatible , Tri-state output
• Common I/O capability
• Automatic power-down when deselected
• Available in 32-pin SOP ,TSOP-I(8x20mm), TSOP-I(8x13.4mm) ,48-pin CSP packages
• Operating temperature :
Commercial : 0 ~ +70 °C
Industrial : -40 ~ +85 °C


Pinout

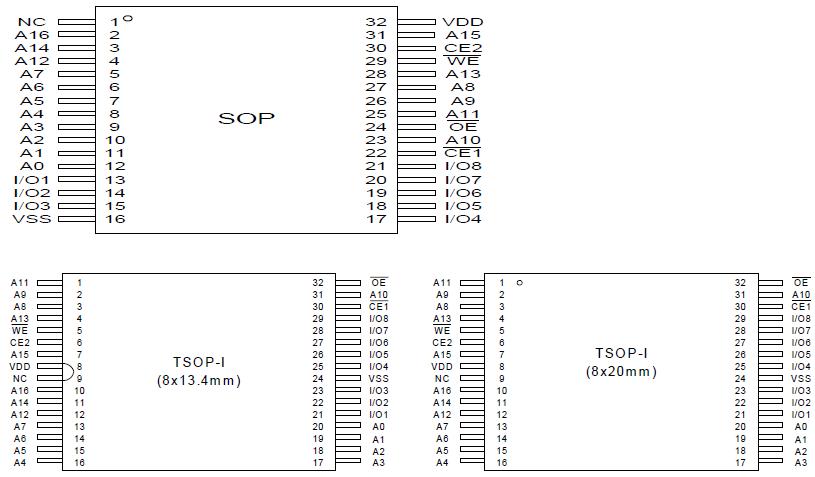

Connection Diagram


Specifications

PARAMETER
SYM
MIN.
MAX.
UNIT
Voltage on Any Pin Relative to Gnd
VR
-0.5
+4.6 V
V
Power Dissipation
PD
-
0.7
W
Storage Temperature
TSTG
-55
+150
°C
Operating
Temperature
commercial
Ta
0
+70
°C
industrial
-40
+85


*Note: Stresses greater than those listed above Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and function operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.





Description

The T15N1024A is a very Low Power CMOS Static RAM organized as 131,072 words by 8 bits. That operates on a wide voltage range from 2.4V to 3.6V power supply, Fabricated using high performance CMOS technology, Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Data of T15N1024A retention is guaranteed at a power supply voltage as low as 1.5V.
