Part Number: T23-A350XF1

Category: Other

MFG: Other





Description: The T23-A350XF1 is designed as one kind of 3-Electrode-Arrester, T23-A350XF1has some points of features:(1)standard...


Urgent Purchase

T23-A350XF1 General Description


The T23-A350XF1 is designed as one kind of 3-Electrode-Arrester, T23-A350XF1 has some points of features:(1)standard size; (2)fast response time; (3)high current rating; (4)stable performance over life; (5)very low capacitance; (6)high insulation resistance; (7)reliable failsafe device; (8)RoHS-compatible. And this device can be used in wide range of applications such as (1)Branch exchange (MDF); (2)Line protection; (3)Station protection.

The electrical characteristics of the T23-A350XF1 can be summarized as:(1)DC spark-over voltage: 350 V;(2)Insulation resistance at 100 Vdc: > 10 G;(3)Capacitance at 1 MHz: < 1.5 pF;(4)Transverse delay time: < 0.2 s;(5)Weight: 2.5 g;(6)Storage temperature: -40 to +90 °C;(7)Climatic category (IEC 60068-1): 40/ 90/ 21.

And there are some points of cautions and warnings about T23-A350XF1:(1)The short-circuit spring does not trigger until 180 is reached depending on the material. Care must be taken to limit the thermal radiation onto adjacent parts to safe values; (2)Depending on the incorporation position, the surge arrester may have to be additionally secured by mechanical means; (3)Surge arresters must not be operated directly in power supply networks; (4)Surge arresters may become hot in case of longer periods of current stress (danger of burning); (5)Surge arresters may be used only within their specified values. In case of overload, the head contacts may fail or the component may be destroyed; (6)Damaged surge arresters must not be re-used. If you want to know more information about the T23-A350XF1, please download the datasheet in www.seekic.com or www.chinaicmart.com .

T23-A350XF1 datasheet

T2300
PDF/DataSheet Download

Find T23-A350XF1 Suppliers

  • ·T2301
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 273148 KB
  • T2301 Datasheet Download
  • ·T2301A
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 281921 KB
  • T2301A Datasheet Download
  • ·T2301B
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 281921 KB
  • T2301B Datasheet Download
  • ·T2301D
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 281921 KB
  • T2301D Datasheet Download
  • ·T2301F
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 281921 KB
  • T2301F Datasheet Download
  • ·T2301M
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 281921 KB
  • T2301M Datasheet Download
  • ·T2301N
  • ETC [ETC]
  • PHASE CONTROL THYRISTORS
  • 281921 KB
  • T2301N Datasheet Download
  • ·T2302
  • ETC [ETC]
  • SENSITIVE GATE SILICON TRIACS
  • 273148 KB
  • T2302 Datasheet Download

T23-A350XF1 Relative Products

  • T23-A230XF1

    T23-A230XF1

    SURGE ARRESTER 230V GASTUBE 3PIN

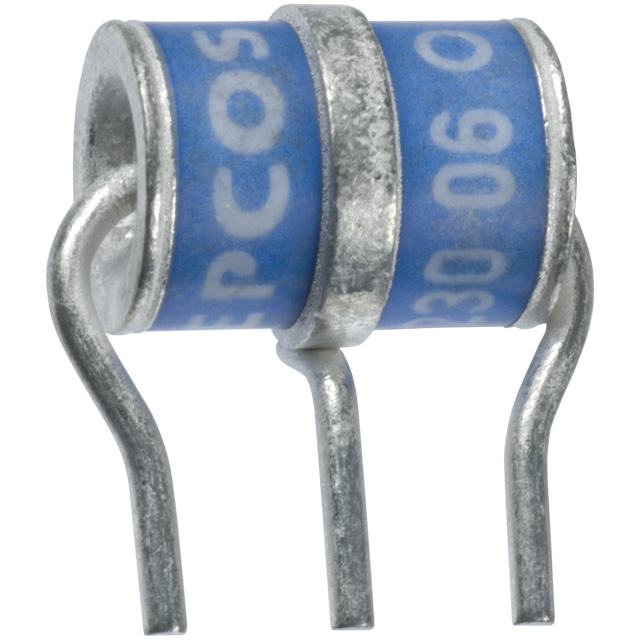

  • T23-A230X
