T48C510

Features:

Programmable system clock with prescaler and five different clock sources:
  Up to 8-MHz crystal oscillator (system clock)
  32-kHz crystal oscillator
  RC-oscillator fully integrated
  RC-oscillator with external resistor adjustment
  External clock input
Wide supply voltage range (2.4 V to 6.2 V)
Very low halt current
4 KByte program EEPROM, 256 x 4-bit RAM
8 hard and software interrupt priority levels
Up to 10 external and 4 internal interrupts, bitwise maskable with programmable priority level
Up to 34 I/O lines
I/O ports bitwise configurable with combined interrupt handling (for serial I/O applications)
2 x 8-bit multifunction timer/counters
Coded reset and watchdog timer
Power-on reset and "brown out" function
Various power-down modes
Efficient, hardware-controlled interrupt handling
High-level programming language in qFORTH
Comprehensive library of useful routines
Windows 95/NT based development and programmer tools

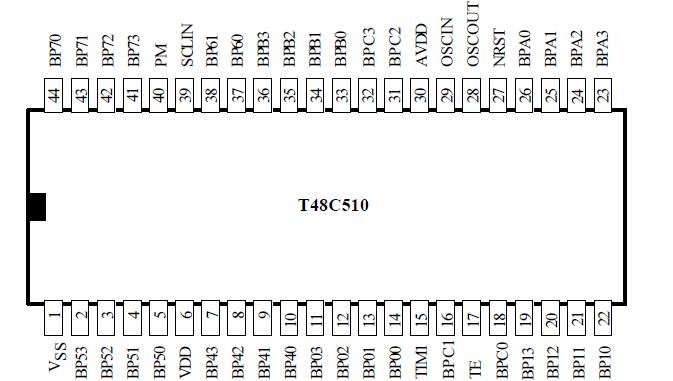

Pinout




Specifications

Parameters	Symbol	Value	Unit
Supply voltage	VDD	-0.3 to +6.5	V
Input voltage(on any pin)	VIN	VSS -0.3VINVDD +0.3	V
Output short circuit duration	tshort	indefinite	s
Operating temperature range	Tamb	-40 to +85
Storage temperature range	Tstg	-65 to +150
Thermal resistance(SSO44)	RthJA	110	K/W
Soldering temperature(t10s)	Tsld	260

Stresses greater than those listed under absolute maximum ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at any condition above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating condition for an extended period may affect device reliability. All inputs and outputs are protected against high electrostatic voltages or electric fields. However, precautions to minimize build-up of electrostatic charges during handling are recommended. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (e.g., V_DD).


Description

The T48C510 is an Multi Time Programmable (MTP) microcontroller which is pin and functionally compatible to the TEMIC Semiconductors M44C510E mask programmable microcontroller. T48C510 contains EEPROM, RAM, up to 34 digital I/O pins, up to 10 maskable external interrupt sources, 4 maskable internal interrupts, a watchdog timer, interval timer, 2 x 8-bit multifunction timer/counter module and a versatile software configurable on-chip system clock module.
