T6020M

Features:

Programmable system-clock with prescaler and five different clock sources
Very low sleep current (< 1 A)
Very low power consumption in active, power-down and sleep mode
2-Kbyte ROM, 256 x 4-bit RAM
12 bidirectional I/Os
Up to 6 external / internal interrupt sources
Synchronous serial interface (2-wire, I²C, 3-wire)
Multifunction timer/counter with
Watchdog, POR and brown-out function
Voltage monitoring incl. Lo_BAT detect
Flash controller M48C893 available (SSO20)
Code-efficient instruction set
High-level language programming with qFORTH compiler

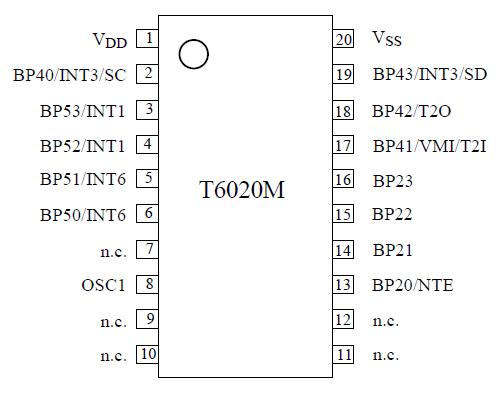

Pinout




Specifications

Parameters	Symbol	Value	Unit
Supply voltage	VDD	-0.3 to +6.5	V
Input voltage(on any pin)	VIN	VSS -0.3VINVDD +0.3	V
Output short circuit duration	tshort	indefinite	s
Operating temperature range	Tamb	-40 to +85
Storage temperature range	Tstg	-65 to +130
Thermal resistance(SSO44)	RthJA	140	K/W
Soldering temperature(t10s)	Tsld	260

Stresses greater than those listed under absolute maximum ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at any condition above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating condition for an extended period may affect device reliability. All inputs and outputs are protected against high electrostatic voltages or electric fields. However, precautions to minimize build-up of electrostatic charges during handling are recommended. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (e.g., V_DD).


Description

The T6020M is a member of TEMIC's family of 4-bit single-chip microcontrollers. It contains ROM, RAM, parallel I/O ports, one 8-bit programmable multifunction timer/counter with modulator function, voltage supervisor, interval timer with watchdog function and a sophisticated on-chip clock generation with external clock input, integrated RCoscillators.
