T6B66BFG

Features: · Row signal for LCD· 65 low-impedance LCD driver outputs· On-chip oscillator with external resistor and internal capacitor· Duty : 1/17, 1/33, 1/49, 1/65· Low power consumption· Logic power supply : 2.7 to 5.5 V· LCD power supply : VDD − 4.0 to VDD − 16.0 V· CMOS Si-...

product image

T6B66BFG Picture
See larger image
SeekIC No. : 004511398 Detail

T6B66BFG: Features: · Row signal for LCD· 65 low-impedance LCD driver outputs· On-chip oscillator with external resistor and internal capacitor· Duty : 1/17, 1/33, 1/49, 1/65· Low power consumption· Log...

T6B66BFG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T6B66BFG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Row signal for LCD
· 65 low-impedance LCD driver outputs
· On-chip oscillator with external resistor and internal capacitor
· Duty : 1/17, 1/33, 1/49, 1/65
· Low power consumption
· Logic power supply : 2.7 to 5.5 V
· LCD power supply : VDD − 4.0 to VDD − 16.0 V
· CMOS Si-Gate process
· 100-pin plastic flat package


Pinout

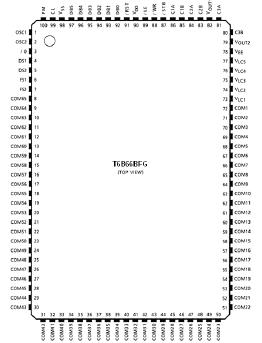

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply Voltage (1)
VDD
(Note 1)
−0.3 to 7.0
V
Supply Voltage (2)
VEE1,2
(Note 3)
VDD − 18.0 to VDD + 0.3
V
Input Voltage
VIN
(Note 1, 2)
−0.3 to VDD + 0.3
V
Operating Temperature
Topr
−20 to 75
Storage Temperature
Tstg
−55 to 125
Note 1: Referenced to VSS
Note 2: Applies to data bus and I / O pins
Note 3: Ensure that the following condition is always maintained: VDD VEE1, VEE2.


Description

The T6B66BFG is a row (common) driver LSI for a small- or medium-scale dot matrix LCD.

The T6B66BFG generates timing signals for the display using an on-chip oscillator and also controls the T6B65AFG column (segment) LCD driver.

Four duty options are available: 1/17, 1/33, 1/49 and 1/65.

The IC is equipped with 65 low-impedance row-driver outputs.Moreover, the IC incorporates internal resistors to divide the bias voltage, a power supply operational amplifier, DC-DC converter and a contrast control circuit; it is therefore easy to construct a low-power LCD system consisting of a T6B66BFG and a T6B65AFG column (segment) LCD driver.

T6B66BFG is lead (Pb)-free product.
