Product Details

Description



Features:

· On-chip two-channel 4-bit DA converter (opposite polarities)
· On-chip pseudo sine wave generator (external clock/16)
· On-chip external analog signal detection/non-detection circuit
· On-chip two-channel analog switch

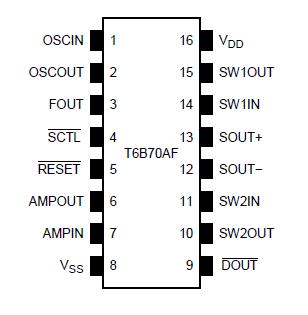

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VDD
−0.3 to 6.0
V
Input voltage
VI
−0.3 to VDD + 0.3
V
Input peak current
IIK
−20 to 20
mA
Operating temperature
Topr
−20 to 80
°C
Storage temperature
Tstg
−55 to 125
°C
Power dissipation
PD
(Note 1)
0.54
W
Note 1: Decreases approximately 4.35 mW per 1°C.


Description

The T6B70AF incorporates two-channel 4-bit DA converter, a pseudo sine wave generator and an external analog signal detection/non-detection circuit. It is designed to be used mainly for communication between water heater and control unit.
