T8301

Features: ` DSP1627 core with bit manipulation unit.` DSP clock speeds up to 80 MHz.`Instruction ROM, 32K x 16 (zero wait-state at 80 MHz).` Dual-port RAM, 6K x 16 (zero wait-state at 80 MHz).` Internal SRAM, 16K x 16 (single wait-state at 80 MHz).` 16-bit analog-to-digital converter.` Programmabl...

product image

T8301 Picture
See larger image
SeekIC No. : 004511545 Detail

T8301: Features: ` DSP1627 core with bit manipulation unit.` DSP clock speeds up to 80 MHz.`Instruction ROM, 32K x 16 (zero wait-state at 80 MHz).` Dual-port RAM, 6K x 16 (zero wait-state at 80 MHz).` Inte...

T8301 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T8301
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` DSP1627 core with bit manipulation unit.
` DSP clock speeds up to 80 MHz.
`Instruction ROM, 32K x 16 (zero wait-state at 80 MHz).
` Dual-port RAM, 6K x 16 (zero wait-state at 80 MHz).
` Internal SRAM, 16K x 16 (single wait-state at 80 MHz).
` 16-bit analog-to-digital converter.
` Programmable gain amplifier on audio input.
` Fixed gain differential microphone input.
` Analog input SRAM buffer, 512 x 16.
` Timed DMA for analog input SRAM.
` Two 16-bit digital-to-analog converters.
` Independent simultaneous speaker and handset outputs.
` Two integrated differential speaker driver outputs.
` Two analog output SRAM buffers, 512 x 16 each.
` Two timed DMA outputs for simultaneous handset and speaker audio output.
` Low-pass filtering on audio inputs and outputs.
` Serial I/O interface.
` General-purpose timer counter.
` Bit I/O interface.
` JTAG test and debugging control.
` Implementation in 0.35 m, 5 V silicon technology.
` Packaged in 100-pin TQFP.



Pinout

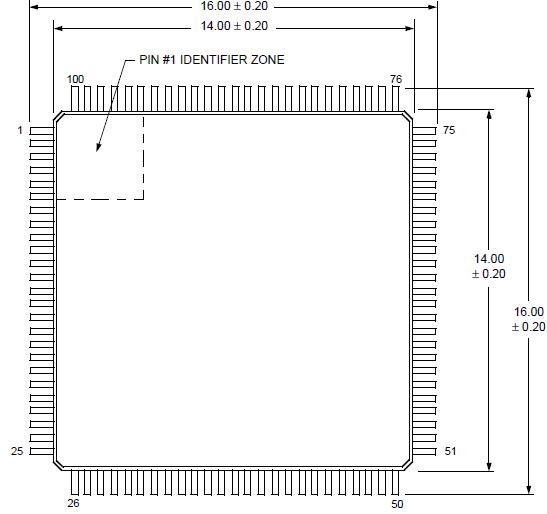

Connection Diagram


Specifications

Voltage Range on VDD with Respect to Ground Using Devices Designed for 5 V Operation ......0.5 V to +7 V
Voltage Range on VDD with Respect to Ground Using Devices Designed for 3 V Operation ...0.5 V to +4.6 V
Voltage Range on Any Pin .................................................................................... .VSS 0.5 V to VDD + 0.5 V
Power Dissipation........................................................................................................................................ 1 W
Ambient Temperature Range ............................................................................................. 40 °C to +85 °C
Storage Temperature Range .............................................................................................65 °C to +150 °C
