TA1360ANG

Features:

Luminance Block
• Black stretch circuit and DC restoration rate correction circuit
• Dynamic correction circuit (gray scale correction)
• SRT (LTI)
• Y group delay correction (shoot balance correction)
• High-bright color circuit
• Color detail enhancer (CDE)
• White pulse limiter (WPL)
• VSM output
Color difference Block
• Fresh color correction
• Dynamic Y/C correction circuit
• Color SRT (CTI)
• Color circuit
• Green stretch
• Blue stretch
Text Block
• OSD blending SW
• ACB (only black level)
• Two analog RGB inputs
Synchronization Block
• Horizontal sync (15.75 k, 28.125 k, 31.5 k, 33.75 k, 37.9 k, 45 kHz)
• Vertical sync (525I/P, 625I/P, 750P, 1125I/P, PAL 100 Hz/NTSC 120 Hz
• 2- and 3-level sync separator circuit
• HD/VD input (positive and negative polarities)
• Copy guard
• Vertical blanking

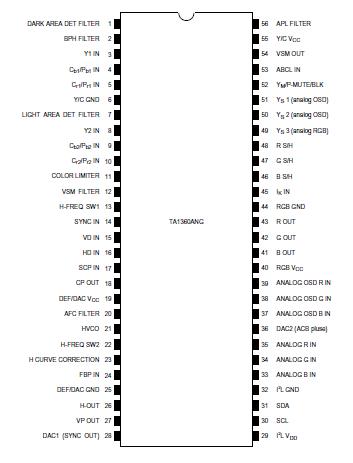

Pinout




Specifications

Characteristics	Symbol	Rating			Unit
		PCB A	PCB B	PCB C
Supply Voltage	VCCmax	12	12	12	V
Input Terminal Voltage	einmax	9	9	9	VP-P
Power dissipation	PD(Note3)	2551	2717	3378	mW
Power dissipation reduction rate depending on temperature	1/ja	20.4	21.7	27.0	mW/
Operating Temperature	Topr	−20 to 65	−20 to 65	−20 to 65
Storage Temperature	Tstg	−55 to 150	−55 to 150	−55 to 150
Supply voltage (pins 19, 40, and 55)	min	8.5	8.7	8.7	V
	typ.	8.8	9.0	9.0
	max	9.1	9.3	9.3

Description

The TA1360ANG integrates an analog component signal (YCbCr/YPbPr) processor and sync processor in a 56-pin shrink DIP plastic package. The IC is ideal for digital TVs, progressive TVs, and double scan TVs.

The luminance block and the color difference block incorporate the high performance signal processing circuits. The sync processor block supports 525I/60, 625I/50, 525P/60, 625P/50, 1125I/50, 1125I/60, 750P/60, (750P/50), PAL100 Hz, NTSC120 Hz, and SVGA/60(VESA).

The TA1360ANG incorporates the I2C bus. The device can control various functions via the bus line.
