TA58LT00F

Features: • Built-in ON/OFF control function (active high)• Maximum output current : 150mA• Output voltage : 2.5 V ∼ 13.4 V• Tracking voltage accuracy : ± 10mV (@Tj = 25°C)• Low standby current (output OFF mode) : 1A (Typ.)• Protection function : Over-curr...

product image

TA58LT00F Picture
See larger image
SeekIC No. : 004511928 Detail

TA58LT00F: Features: • Built-in ON/OFF control function (active high)• Maximum output current : 150mA• Output voltage : 2.5 V ∼ 13.4 V• Tracking voltage accuracy : ± 10mV (@Tj = 2...

TA58LT00F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TA58LT00F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in ON/OFF control function (active high)
• Maximum output current : 150mA
• Output voltage : 2.5 V ∼ 13.4 V
• Tracking voltage accuracy : ± 10mV (@Tj = 25°C)
• Low standby current (output OFF mode) : 1A (Typ.)
• Protection function : Over-current protection / thermal shutdown / Reverse connection of power supply / 60 V load dump
• Package type : Surface-mount New PW-Mold5pin


Pinout

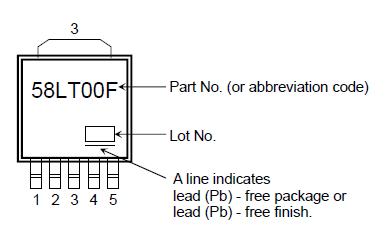

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
Input voltage VIN -38∼38 V

V
EN Input voltage

Output current

Junction temperature

Storage temperature		 VEN

IOUT

Tj

Tstg		 -0.3∼38

150

150

−55~150		 V

mA

°C

°C
Power dissipation Ta = 25°C PD 1 W
Tc= 25°C 10



Description

The TA58LT00F consists of small-surface mount type tracking regulators with an output current of 150 mA (maximum) and an ON/OFF control switch. Control by an EN (ON/OFF) terminal enables the regulator to be operated only when required (output ON). The output voltage can be controlled to an arbitrary voltage between 2.5V and 13.4V by applying a necessary voltage to ADJ through a microcontroller, etc. It is also possible to enable or disable the regulator via the enable (ON/OFF) terminal. Enabling the regulator only when necessary contributes to the energy saving of equipment.
