MFG:4095 Package Cooled:TI
MFG: 4095
Package Cooled: TI
Description: The TAS5112 is a high-performance, integrated stereo digital amplifier power stage designed to drive 6...
The TAS5112 is a high-performance, integrated stereo digital amplifier power stage designed to drive 6- speakers at up to 50 W per channel. The device incorporates TI's PurePath Digital technology and is used with a digital audio PWM processor (TAS50XX) and a simple passive demodulation filter to deliver high-quality, high-efficiency, true-digital audio amplification.
The efficiency of this digital amplifier is typically 90%, reducing the size of both the power supplies and heatsinks needed. Overcurrent protection, overtemperature protection, and undervoltage protection are built into the TAS5112, safeguarding the device and speakers against fault conditions that could damage the system.
|

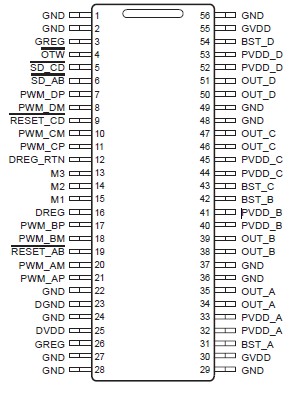

TAS5111 |
UNITS |
| DVDD TO DGND |
0.3 V to 4.2 V |
| GVDD TO GND |
33.5 V |
| PVDD_X TO GND (dc voltage) |
33.5 V |
| PVDD_X TO GND (spike voltage(2)) |
48 V |
| OUT_X TO GND (dc voltage) |
33.5 V |
| OUT_X TO GND (spike voltage(2)) |
48 V |
| BST_X TO GND (dc voltage) |
48 V |
| BST_X TO GND (spike voltage(2)) |
53 V |
| GREG TO GND (3) |
14.2 V |
| PWM_XP, RESET, M1, M2, M3, SD, OTW |
0.3 V to DVDD + 0.3 V |
| Maximum operating junction temperature, TJ |
40 to 150 |
| Storage temperature |
40 to 125 |
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolutemaximum- rated conditions for extended periods may affect device reliability.
(2) The duration of voltage spike should be less than 100 ns.
(3) GREG is treated as an input when the GREG pin is overdriven by GVDD of 12 V.
` 50 W per Channel (BTL) Into 6 (Stereo)
` 95-dB Dynamic Range With TAS5026
` Less Than 0.1% THD+N (1 W RMS Into 6 )
` Less Than 0.2% THD+N (50 W RMS into 6 )
` Power Efficiency Typically 90% Into 6- Load
` Self-Protecting Design (Undervoltage, Overtemperature and Short Conditions) With Error Reporting
` Internal Gate Drive Supply Voltage Regulator
` EMI Compliant When Used With Recommended System Design
· DVD Receiver
· Home Theatre
· Mini/Micro Component Systems
· Internet Music Appliance
TAS5112DFD
PDF/DataSheet Download
IC AMP AUDIO PWR 62W D 56TSSOP
IC AMP AUDIO PWR 62W D 56TSSOP
IC AMP AUDIO PWR 62W D 56TSSOP
The TAS5112ADFD belongs to TAS5112A. The TAS5112A is a high-performance, integrated stereo digital amplifier power stage designed to drive 6-Ω speakers at up to 50 W per channel. The device incorporates TI's PurePath DigitalTM technology and is used wi...
IC AMP AUDIO PWR 62W D 56TSSOP
IC AMP AUDIO PWR 62W D 56TSSOP
