Part Number: TAS5122



MFG: C

Package Cooled: SOP



Description: The TAS5122 is a high-performance, integrated stereo igital amplifier power stage designed to drive 6-...


Urgent Purchase

TAS5122 General Description


The TAS5122 is a high-performance, integrated stereo igital amplifier power stage designed to drive 6- speakers at up to 30 W per channel. The device incorporates TI's PurePath Digital technology and is used with a digital audio PWM processor (TAS50XX) and a simple passive demodulation filter to deliver high-quality, high-efficiency, true-digital audio amplification.

The efficiency of this digital amplifier is typically greater than 90%. Overcurrent protection, overtemperature protection, and undervoltage protection are built into the TAS5122, safeguarding the device and speakers against fault conditions that could damage the system.

TAS5122 Maximum Ratings

TAS5111
UNITS
DVDD TO DGND
0.3 V to 4.2 V
GVDD TO GND
28 V
PVDD_X TO GND (dc voltage)
28 V
OUT_X TO GND (dc voltage)
28 V
BST_X TO GND (dc voltage)
40 V
GREG TO GND (2)
14.2 V
PWM_XP, RESET, M1, M2, M3, SD, OTW
0.3 V to DVDD + 0.3 V
Maximum operating junction
temperature, TJ
40 to 150
Storage temperature
40 to 125


(1) Stresses beyond those listed under "absolute maximum ratings"may cause permanent damage to the device. These are stress atings only, and functional operation of the device at these or any ther conditions beyond those indicated under "recommendedoperating conditions" is not implied. Exposure to absolutemaximum-rated conditions for extended periods may affect device eliability.

(2) GREG is treated as an input when the GREG pin is overdriven by VDD of 12 V.

TAS5122 Features

` 2 * 30 W (BTL) Into 6 at 1 kHz
` 95-dB Dynamic Range (in System With TAS5026)
` < 0.2% THD+N (in System 30 W RMS Into 6- Resistive Load)
` Device Power Efficiency Typical >90% Into 6- Load
` Self-Protection Design (Including Undervoltage, Overtemperature, and Short Conditions) With Error Reports
` Internal Gate Drive Supply Voltage Regulator
` EMI Compliant When Used With Recommended System Design

TAS5122 Typical Application

· DVD Receiver
· Home Theatre
· Mini/Micro Component Systems
· Internet Music Appliance

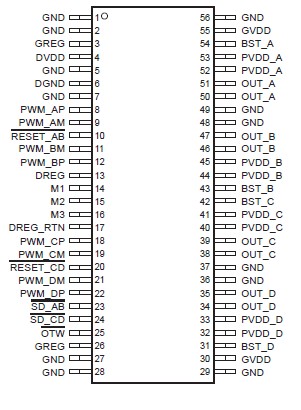

TAS5122 Connection Diagram

TAS5122 Connection Diagram

TAS5122 datasheet

TAS5122
PDF/DataSheet Download
