Purchase TAS5142, In-stock TAS5142 From SeekIC.
MFG:TI
Part Number: TAS5142
MFG: TI
Description: The TAS5142 is a third-generation, high-performance, integrated stereo digital amplifier power stage w...
- Table of contents:
TAS5142
-
Suppliers
DataSheet
General Description
TAS5142 General Description
The TAS5142 is a third-generation, high-performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5142 is (1) It is not recommended to drive 200 W (total capable of driving a 4-W bridge-tied load (BTL) at up power) into the DDV package continuously.
to 100 W per channel with low integrated noise at the For multichannel systems that require two output, low THD+N performance, and low idle power channels to be driven at full power with the dissipation. DDV package option, it is recommended to design the system so that the two channels A low-cost, high-fidelity audio system can be built are in two separate devices.
using a TI chipset, comprising a modulator (e.g., TAS5508) and the TAS5142. This system only re- PurePath Digital™ quires a simple passive LC demodulation filter to Please
TAS5142 Maximum Ratings
| TAS5142 | |
| VDD to AGND | 0.3 V to 13.2 V |
| GVDD_X to AGND | 0.3 V to 13.2 V |
| PVDD_X to GND_X (2) | 0.3 V to 50 V |
| OUT_X to GND_X (2) | 0.3 V to 50 V |
| BST_X to GND_X (2) | 0.3 V to 63.2 V |
| VREG to AGND | 0.3 V to 4.2 V |
| GND_X to GND | 0.3 V to 0.3 V |
| GND_X to AGND | 0.3 V to 0.3 V |
| GND to AGND | 0.3 V to 0.3 V |
| PWM_X, OC_ADJ, M1, M2, M3 to AGND | 0.3 V to 4.2 V |
| RESET_X, SD, OTW to AGND | 0.3 V to 7 V |
| Maximum continuous sink current (SD, OTW) | 9 mA |
| Maximum operating junction temperature range, TJ | 0 to 125 |
| Storage temperature | 40 to 125 |
| Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds | 260 |
| Minimum pulse duration, low | 50 ns |
(2) These voltages represent the dc voltage + peak ac waveform measured at the terminal of the device in all conditions.
TAS5142 Features
` 2*100 W at 10% THD+N Into 4- BTL (1)
` 2*80 W at 10% THD+N Into 6- BTL
` 2*65 W at 10% THD+N Into 8- BTL
` 4*40 W at 10% THD+N Into 3- SE
` 4*30 W at 10% THD+N Into 4- SE
` 1*160 W at 10% THD+N Into 3- PBTL
` 1*200 W at 10% THD+N Into 2- PBTL (1)
` >100 dB SNR (A-Weighted)
` <0.1% THD+N at 1 W
` Two Thermally Enhanced Package Options:
DKD (36-pin PSOP3)
DDV (44-pin HTSSOP)
` High-Efficiency Power Stage (>90%) With140-mW Output MOSFETs
` Power-On Reset for Protection on Power UpWithout Any Power-Supply Sequencing
` Integrated Self-Protection Circuits IncludingUndervoltage, Overtemperature, Overload,Short Circuit
` Error Reporting
` EMI Compliant When Used WithRecommended System Design
` Intelligent Gate Drive
` 2*80 W at 10% THD+N Into 6- BTL
` 2*65 W at 10% THD+N Into 8- BTL
` 4*40 W at 10% THD+N Into 3- SE
` 4*30 W at 10% THD+N Into 4- SE
` 1*160 W at 10% THD+N Into 3- PBTL
` 1*200 W at 10% THD+N Into 2- PBTL (1)
` >100 dB SNR (A-Weighted)
` <0.1% THD+N at 1 W
` Two Thermally Enhanced Package Options:
DKD (36-pin PSOP3)
DDV (44-pin HTSSOP)
` High-Efficiency Power Stage (>90%) With140-mW Output MOSFETs
` Power-On Reset for Protection on Power UpWithout Any Power-Supply Sequencing
` Integrated Self-Protection Circuits IncludingUndervoltage, Overtemperature, Overload,Short Circuit
` Error Reporting
` EMI Compliant When Used WithRecommended System Design
` Intelligent Gate Drive
TAS5142 Typical Application
· Mini/Micro Audio System
· DVD Receiver
· Home Theater
· DVD Receiver
· Home Theater

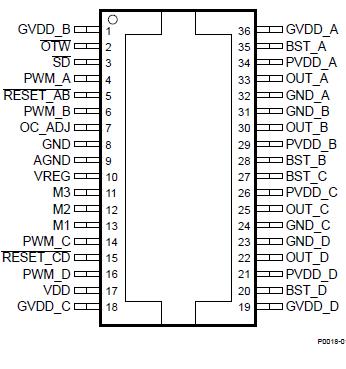

TAS5142 Connection Diagram
TAS5142
