TB7100F

Features: • Capable of high current drive (IOUT = maximum of 700 mA), using only a few external components • High efficiency ( = 90% or higher) (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA).• Operating voltage (VIN) range: 3 to 5.5 V• Low on-resistance (RDS(ON)): 0.27 (typ.)...

product image

TB7100F Picture
See larger image
SeekIC No. : 004512763 Detail

TB7100F: Features: • Capable of high current drive (IOUT = maximum of 700 mA), using only a few external components • High efficiency ( = 90% or higher) (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA...

TB7100F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TB7100F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Capable of high current drive (IOUT = maximum of 700 mA), using only a few external components
• High efficiency ( = 90% or higher) (@VIN = 5V, VOUT = 3.3V, and IOUT = 300 mA).
• Operating voltage (VIN) range: 3 to 5.5 V
• Low on-resistance (RDS(ON)): 0.27 (typ.) if VIN = 5 V
• High oscillation frequency of 550 kHz (typ.), making it possible to use small external components.
• Uses external phase compensation, assuring a high degree of design freedom in selecting external components and
determining a loop response.
• Employs a current mode architecture with excellent fast load response.
• A small surface mount-type ceramic capacitor can be used as an output smoothing capacitor.
• Housed in a small surface-mount package (PS-8) with a low thermal resistance.

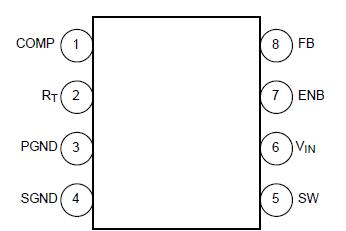

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit

Input voltage
VIN

-0.3~6
V
Switch pin voltage
VSW
-0.3~6
V
Feedback pin voltage

VFB
-0.3~6
V
Enable pin voltage

VENB
-0.3~6
V
Input-enable pin voltage
VENB-VIN
VENB-VIN<0.3
V
Power dissipation (Note 1)
PD
0.7
W
Operating temperature
Topr

−40~85
Channel temperature
Tch
150
Storage temperature
Tstg
−55~150





















Description

The TB7100F is a single-chip step-down DC-DC converter IC. Equipped with a built-in high-speed and low on-resistance power MOSFET, and utilizing a chopper circuit, this IC can achieve a high efficiency in a wide load current range.
