Features:

· 3-phase full-wave sensorless drive
· PWM control (PWM signal is applied externally.)
· Turn-on signal output current: 20 mA
· Overcurrent protection function
· Forward/reverse modes
· Lead angle control function (0°, 7.5°, 15° and 30°)
· Lap turn-on function
· Two types of PWM output (upper PWM and upper/lower alternate PWM)
· Rotational speed sensing function

Pinout

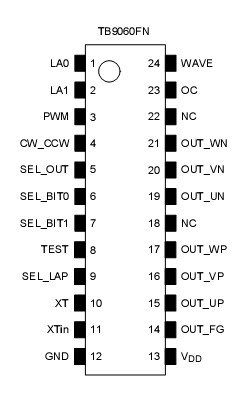

Connection Diagram

Specifications

Characteristics	Symbol	Rating	Unit
Power supply voltage	V_DD	6.0	V
Input voltage	V_IN	0.2~V_DD 0.2	V
Turn-on signal output current	I_OUT	20	mA
Power dissipation	P_D	850	mW
Operating temperature	T_opr	- 40~125
Storage temperature	T_stg	- 55~150
Lead Temperature-Time	T_sol	260(10s)	°C

Description

The TB9060FN is a 3-phase full-wave sensorless controller for brushless DC motors. It is capable of controlling voltage by PWM signal input. When combined with various drive circuits, it can be used for various types of motors.
