TC54

Lead Style :
Capacitance :
Tolerance :
Voltage Rating :
Operating Temperature Range :
Dimensions :
Packaging : Bulk
Product : General Purpose Electrolytic Capacitors
Termination Style : Axial


Features:

Precise Detection Thresholds ...... Standard ± 2.0%
Custom ± 1.0%
Small Packages ............. SOT-23A-3, SOT-89, TO-92
Low Current Drain ..................................... Typ. 1mA
Wide Detection Range .......................... 2.1V to 6.0V
Wide Operating Voltage Range ............ 1.5V to 10V

Application

Battery Voltage Monitoring
Microprocessor Reset
System Brownout Protection
Switching Circuit in Battery Backup
Level Discriminator

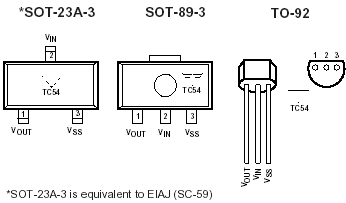

Pinout






Specifications

Parameter Name	Value
Vcc Range (V)	0.7 to 10
Output	Open-Drain/Push-Pull
Typical Supply Current (A)	1.1
Reset Type	Active Low
Minimal Reset Voltage (V)	4.21, 4.12, 2.94, 2.84, 2.65, 2.06, 1.37
Minimal Reset Pulse Width (ms)	0.2
Operating Temp. Range (°C)	-40 to 85

Supply Voltage (VIN) ................................................. 12V
Output Voltage: CMOS ............ (VSS 0.3) to (VIN + 0.3)
Open Drain ................. (VSS 0.3) to 12V
Output Current .........................................................50mA
Power Dissipation: (TA £ 70°C)
SOT-23A-3 .....................................................240mW
SOT-89-3 .......................................................400mW
TO-92 .............................................................440mW
Operating Temperature ......................... 40°C to + 85°C
Storage Temperature .......................... 65°C to + 150°C
Soldering Temperature ........................ 300°C, 10 seconds




Description

The TC54 Series are CMOS voltage detectors, suited especially for battery-powered applications because of their extremely low 1uA operating current and small surface-mount packaging. Each part is laser trimmed to the desired threshold voltage which can be specified from 1.1V to 6.0V, for a 2% tolerance. The device includes a comparator, low-current high-precision reference, laser-trimmeddivider,hysteresiscircuit and output driver. The TC54 is available with either an open-drain or complementary output stage. In operation, the TC54's output (VOUT) remains in the logic HIGH state as long as VIN is greater than the specified threshold voltage (V DET). When VIN falls below V DET, the output is driven to a logic LOW. VOUT of TC54 remains LOW until VIN rises above V DET by an amount VHYST, whereupon it resets to a logic HIGH.




Parameters:

Technical/Catalog Information	TC54
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	16F
ESR (Equivalent Series Resistance)	7.640 Ohm
Features	General Purpose
Lifetime @ Temp.	1000 Hrs @ 85°C
Maximum Temperature	-40°C ~ 85°C
Size / Dimension	0.625" Dia x 1.375" H (15.88mm x 34.93mm)
Lead Spacing	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial
Packaging	Bulk
Tolerance	±20%
Voltage Rating	250V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TC54 TC54
