TC74VCXHR162245FT

Features:

`26 series resistors on all outputs
`Low-voltage operation: V_CC = 1.8 to 3.6 V
`Bushold on data inputs eliminating the need for external pull-up/pull-down resistors
`High-speed operation: t_pd = 3.4 ns (max) (V_CC = 3.0 to 3.6 V)
`tpd = 4.3 ns (max) (V<sub>CC</sub> = 2.3 to 2.7 V)
`tpd = 5.7 ns (max) (V_CC = 1.8 V)
`3.6-V tolerant control inputs.
`Output current: I_OH/I_OL = ±12 mA (min) (V_CC = 3.0 V)
`IOH/IOL = ±8 mA (min) (V<sub>CC</sub> = 2.3 V)
`IOH/IOL = ±4 mA (min) (V_CC = 1.8 V)
`Latch-up performance: ±300 mA
`ESD performance: Machine model > ±200 V
`Human body model > ±2000 V
`Package: TSSOP (thin shrink small outline package)

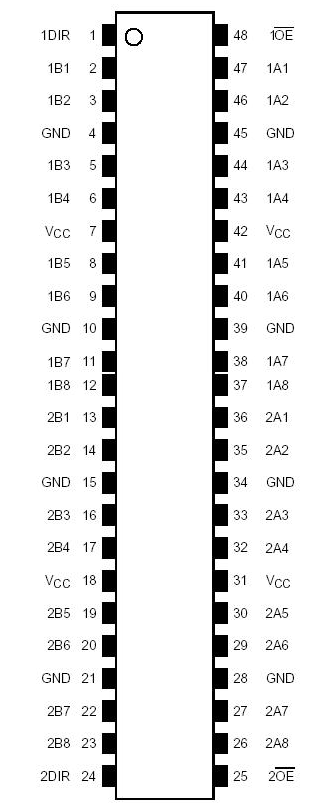

Pinout




Specifications

Characteristics		Symbol	Rating	Unit
Power supply voltage		VCC	0.5 to 4.6	V
DC input voltage	(DIR, OE )	VIN	0.5 to 4.6	V
	(An, Bn)		0.5 to VCC + 0.5(Note 2)
DC input voltage	(An, Bn)	VOUT	0.5 to VCC + 0.5(Note 3)	V
Input diode current		IIK	50	mA
Output diode current		IOK	±50 (Note 4)	mA
Output current		IOUT	±50	mA
Power dissipation		PD	400	mA
DC VCC/ground current per supply pin		ICC/IGND	±100	mW
Storage temperature		Tstg	-65 to 150	°C

Description

The TC74VCXHR162245FT is a high-performance CMOS 16-bit bus transceiver. Designed for use in 1.8-V, 2.5-V or 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation.

This 16-bit bus transceiver of TC74VCXHR162245FT is controlled by direction control (DIR) inputs and output enable (OE) inputs which are common to each byte. TC74VCXHR162245FT can be used as two 8-bit transceivers or one 16-bit transceiver. The direction of data transmission is determined by the level of the DIR inputs. The OE inputs can be used to disable the device so that the busses are effectively isolated.

The 26-Ω series resistor of TC74VCXHR162245FT helps reducing output overshoot and undershoot without external resistor.

The A, B data inputs of TC74VCXHR162245FT include active bushold circuitry,eliminating the need for external pull-up resisisors to hold unused or floating data inputs at a valid logic level.

All inputs of  TC74VCXHR162245FT are equipped with protection circuits against static discharge.
