Part Number: TC818A
Description: The TC818A is an integrating analog-to-digital converter (ADC) with a 3-1/2 digit numeric LCD driver, ...
- Table of contents:
TC818A
-
Suppliers
DataSheet
General Description
TC818A General Description
The TC818A is an integrating analog-to-digital converter (ADC) with a 3-1/2 digit numeric LCD driver, automatic ranging, and single 9V battery operation. The numeric display provides 0.05% resolution and a full set of annunciators that spell out the TC818A's many operating modes.
Automatic range selection is provided for both voltage (DC and AC) and ohms (high and low power) measurements. Expensive and bulky mechanical range switches are not required. Five full scale ranges are available, with automatic selection of external volt/ohm attenuators over a 1 to 10,000 range. Two current ranges, 20mA and 200mA, can be manually selected. The auto-range feature can be bypassed, allowing input attenuator selection through a single line input.
TC818A Maximum Ratings
Supply Voltage .......................................................15V
Analog Input Voltage ..................................VCC to VSS
Reference Input Voltage..............................VCC to VSS
Voltage at Pin 43 ................................. Common ±0.7V
Power Dissipation ............................................800mW
Operating Temperature Range............. 0°C to +70°C
Storage Temperature Range ........... -65°C to +150°C
TC818A Features
• Auto-Ranging Analog-to-Digital Converter
3-1/2 Digit Display
• Annunciator Outputs Permit Customizing of
• Auto-Range Operation for AC and DC Voltage
and Resistance Measurements
• Two User Selected AC/DC
• Current Ranges: 20mA and 200mA
• 22 Operating Ranges: 9 DC/AC Voltage
• 4AC/DCCurrent
• 9 Resistance and Low Power Ohms
• Display Hold Function
• 3-1/2 Digit Resolution in Auto-RangeMode: 1/2000
• Extended Resolution in Manual RangeMode: 1/3000
• Internal AC-to-DC Conversion Op Amp
• Triplex LCD Drive for Decimal Points, Digits,
• Bar Graphs, and Annunciators
• Continuity Detection and Piezoelectric Transducer Driver
• Low Drift Internal Reference: 75ppm/°C
3-1/2 Digit Display
• Annunciator Outputs Permit Customizing of
• Auto-Range Operation for AC and DC Voltage
and Resistance Measurements
• Two User Selected AC/DC
• Current Ranges: 20mA and 200mA
• 22 Operating Ranges: 9 DC/AC Voltage
• 4AC/DCCurrent
• 9 Resistance and Low Power Ohms
• Display Hold Function
• 3-1/2 Digit Resolution in Auto-RangeMode: 1/2000
• Extended Resolution in Manual RangeMode: 1/3000
• Internal AC-to-DC Conversion Op Amp
• Triplex LCD Drive for Decimal Points, Digits,
• Bar Graphs, and Annunciators
• Continuity Detection and Piezoelectric Transducer Driver
• Low Drift Internal Reference: 75ppm/°C

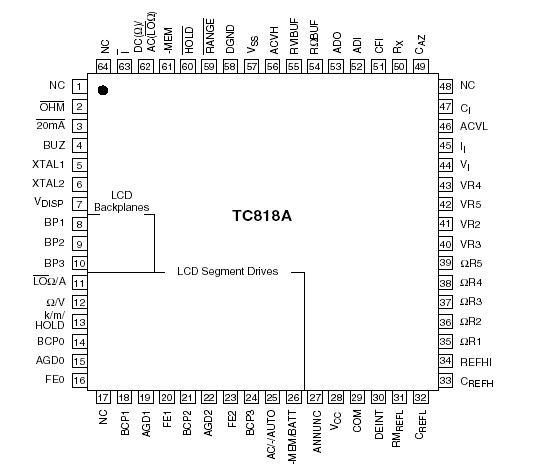

TC818A Connection Diagram
TC818A
