Part Number: TC820
Description: The TC820 is a 3-3/4 digit, multi-measurement system especially suited for use in portable instruments...
- Table of contents:
TC820
-
Suppliers
DataSheet
General Description
TC820 General Description
The TC820 is a 3-3/4 digit, multi-measurement system especially suited for use in portable instruments. It integrates a dual slope A/D converter, auto-ranging frequency counter and logic probe into a single 44-pinsurface mount, or 40-pin through hole package. The TC820 operates from a single 9V input voltage (battery) and features a built-in battery low flag. Function and decimal point selection are accomplished with simple ogic inputs designed for direct connection to an external microcontroller or rotary switch.
TC820 Maximum Ratings
Supply Voltage (VDD to GND) ...................................15V
Analog Input Voltage:
(Either Input) (Note 1) ................................ VDD to VSS
Reference Input Voltage (Either Input) ........ VDD to VSS
Digital Inputs..............................................VDD to DGND
VDISP .......................................... VDD to (DGND 0.3V)
Package Power Dissipation (TA 70°C) (Note 2):
40-Pin Plastic DIP ................................................. 1.23W
44-Pin PLCC ...........................................................1.23W
44-Pin Plastic Flat Package (PQFP) ........................1.00W
Operating Temperature Range:
"C" Devices ............................................. 0°C to +70°C
"E" Devices............................................-40°C to +85°C
Storage Temperature Range .............. -65°C to +150°C
TC820 Features
• Multiple Analog Measurement System
- Digit A/D Converter
- Frequency Counter
- Logic Probe
• Low Noise A/D Converter:
- Differential Inputs: (1pA Bias Current)
- On-Chip 50ppm/°C Voltage Reference
• Frequency Counter:
- 4MHz Maximum Input Frequency
- Auto-Ranging Over Four Decade Range
• Logic Probe:
- Two LCD Annunciators
- Buzzer Driver
• 3-3/4 Digit Display with Over Range Indicator
• LCD Display Driver with Built-in Contrast Control
• Data Hold Input for Comparison Measurements
• Low Battery Detect with LCD Annunciator
• Under R ange and Over Range Outputs
• On-Chip Buzzer Driver with Control Input
• 40-Pin Plastic DIP, 44-Pin Plastic Flat Pack, or44-Pin PLCC Packages
- Digit A/D Converter
- Frequency Counter
- Logic Probe
• Low Noise A/D Converter:
- Differential Inputs: (1pA Bias Current)
- On-Chip 50ppm/°C Voltage Reference
• Frequency Counter:
- 4MHz Maximum Input Frequency
- Auto-Ranging Over Four Decade Range
• Logic Probe:
- Two LCD Annunciators
- Buzzer Driver
• 3-3/4 Digit Display with Over Range Indicator
• LCD Display Driver with Built-in Contrast Control
• Data Hold Input for Comparison Measurements
• Low Battery Detect with LCD Annunciator
• Under R ange and Over Range Outputs
• On-Chip Buzzer Driver with Control Input
• 40-Pin Plastic DIP, 44-Pin Plastic Flat Pack, or44-Pin PLCC Packages

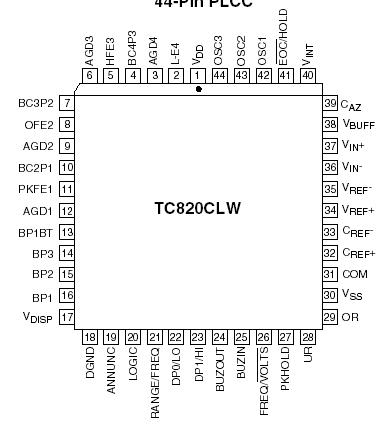

TC820 Connection Diagram
