TC94A29FB
-
Suppliers
DataSheet
General Description
TC94A29FB Maximum Ratings
|
Characteristic |
Symbol |
Rating |
Units | |
| Supply voltage |
VDD |
0.3 to 4.0 |
V | |
|
Input voltage
|
CVDD pin |
VIN1 |
0.3 to CVDD + 0.3 |
V |
| AVDD pin |
VIN2 |
0.3 to AVDD + 0.3 | ||
| DVDD pin |
VIN3 |
0.3 to DVDD + 0.3 | ||
| MVDD pin |
VIN4 |
0.3 to MVDD + 0.3 | ||
|
VIN5 |
0.3 to 6.0 | |||
| Power dissipation | TC94A29FAG |
PD |
400 |
mW |
| TC94A29FB |
500 | |||
| Operating temperature |
Topr |
40 to 85 |
||
| Storage temperature |
Tstg |
65 to 150 |
||
TC94A29FB Features
Single-chip CD processor with on-chip CMOS LCD driver and 4-bit microcontroller
Operating supply voltage: CD in operation: VDD = 3.0 to 3.6 V (3.3 V typ.) CD stopped: VDD = 1.8 to 3.6 V (only CPU in operation)
Supply current: CD in operation: IDD = 30 mA (typ.) CD stopped: IDD = 1.5 mA (CD standby mode, with 16.9344-MHz crystal oscillator, CPU in operation) CD stopped: IDD = 50 µA (CD standby mode, with 75-kHz crystal oscillator, CPU in operation)
Operating temperature range: Ta = −40 to 85°C
Package: LQFP/QFP-64 (0.5/0.65-mm pitch, 1.4 mm thick)
E2PROM: TC94AE29FAG/FB

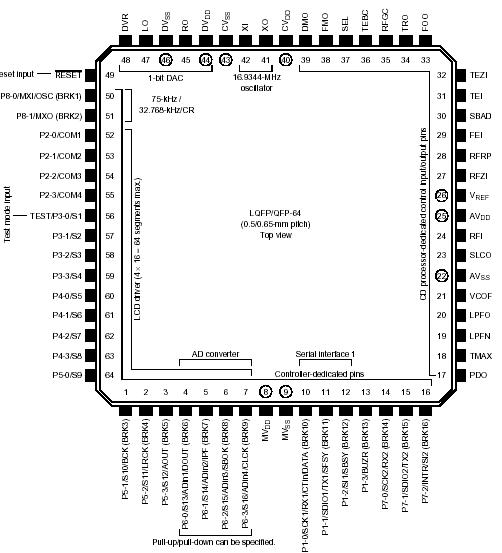

TC94A29FB Connection Diagram
TC94A29FB
PDF/DataSheet Download
- Datasheet: TC94A29FB
- File Size: 289318 KB
- Manufacturer: TOSHIBA [Toshiba Semiconductor]
- Click here to Download
