TCD2558D

Features: ·Number of image sensing elements: 5340 elements × 3 line·Image sensing element size: 7 µm by 7 µm on 7 µm centers·Photo sensing region: High sensitive and low dark current PN photodiode·Distance between photodiode array: 28 µm, 4 line·Clock: 2 phase (5 V)·Power s...

product image

TCD2558D Picture
See larger image
SeekIC No. : 004515470 Detail

TCD2558D: Features: ·Number of image sensing elements: 5340 elements × 3 line·Image sensing element size: 7 µm by 7 µm on 7 µm centers·Photo sensing region: High sensitive and low dark curre...

TCD2558D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCD2558D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Number of image sensing elements: 5340 elements × 3 line
·Image sensing element size: 7 µm by 7 µm on 7 µm centers
·Photo sensing region: High sensitive and low dark current PN photodiode
·Distance between photodiode array: 28 µm, 4 line
·Clock: 2 phase (5 V)
·Power supply: 12 V power supply voltage
·Internal circuit: Clamp circuit
·Package: 22 pin CERDIP package
·Color filter: Red, green, blue

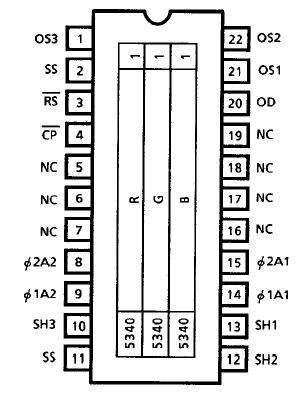

Pinout

Connection Diagram


Specifications

CHARACTERISTIC SYMBOL RATING UNIT
Clock Pulse Voltage V −0.3~8 V
Shift Pulse Voltage VSH V
Reference Voltage VRS V
Power Supply Voltage (Analog) VCP V
Power supply VOD −0.3~15 V
Operating Temperature Topr 0~60 °C
Storage Temperature Tstg −25~85 °C
Note 1: All voltage are with respect to SS terminals (ground).


Description

The TCD2558D is a high sensitive and low dark current 5340 elements × 3 line CCD color image sensor which includes CCD drive circuit, clamp circuit.

The TCD2558D sensor can be used for image scanner. The device contains a row of 5340 × 3 photodiodes, which provide a 24 lines/mm (600 dpi) across a A4 size paper. The divice is operated by 5 V (pulse), and 12 V power supply.
