Part Number: TCR5SB15
Description: general purpose in CMOS process, and these provide low dropout, low bias current, and control function...
- Table of contents:
TCR5SB15
-
Suppliers
DataSheet
General Description
TCR5SB15 General Description
general purpose in CMOS process, and these provide low dropout, low bias current, and control function. TCR5SB15~TCR5SB50 perform ON/OFF operation for IC by control pin.
Output voltage is fixed from 1.5V to 5.0V by per 0.1V step. Maximum output current is 200mA, and overcurrent protection circuit is designed in.
Package sizes are available in SMV (SOT23-5) (SC-74A), and compact ceramic capacitors can be used at input and output. These devices are suitable for use of portable equipment such as cellular phone.
TCR5SB15 Maximum Ratings
| Characteristics | Symbol | Rating | Unit |
| Input voltage | VIN | 6 | V |
| Control voltage | VCT | -0.3~ 6 | V |
| Output voltage | VOUT | -0.3~ VIN + 0.3 | V |
| Output current | IOUT | 200 | mA |
| Power dissipation | PD | 200 (Note 1) | mW |
| 380 (Note 2) | |||
| Operation temperature range | Topr | −40~85 | |
| Junction temperature | Tj | 150 | |
| Storage temperature range | Tstg | −55~150 |
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Note 1: Unit Ratintg
Note 2: Rating at mounting on a board (Glass epoxy board dimmention : 30 mm * 30 mm, Copper pad area : 50 mm2)
TCR5SB15 Features
• Low quiescent current ( IB = 40 A (typ.) at IOUT = 0 mA )
• Low stand-by current ( IB(OFF) = 0.1 A (typ.) @ Stand-by mode )
• Low-dropout voltage ( VIN - VOUT = 85 mV (typ.) at TCR5SB30, IOUT = 50 mA )
• High current output ( IOUT = 200 mA (max) )
• High ripple rejection ( R.R = 80 dB (typ) @ IOUT = 10 mA, f =1kHz )
• Low output noise voltage ( VNO = 30 Vrms (typ.) @ TCR5SB30, IOUT = 10 mA,
10 Hz f 100 kHz )
• Control voltage can be allowed from -0.3 to 6 V regardless of VIN voltage.
• Overcurrent protection
• Ceramic capacitors can be used ( CIN = 0.1F, COUT =1.0 F )
• Wide range voltage listing (Please see Output Voltage Accuracy at page 4 for
variety of the output voltage )
• Small package, SMV (SOT23-5) (SC-74A)
• RoHS compatible
• Low stand-by current ( IB(OFF) = 0.1 A (typ.) @ Stand-by mode )
• Low-dropout voltage ( VIN - VOUT = 85 mV (typ.) at TCR5SB30, IOUT = 50 mA )
• High current output ( IOUT = 200 mA (max) )
• High ripple rejection ( R.R = 80 dB (typ) @ IOUT = 10 mA, f =1kHz )
• Low output noise voltage ( VNO = 30 Vrms (typ.) @ TCR5SB30, IOUT = 10 mA,
10 Hz f 100 kHz )
• Control voltage can be allowed from -0.3 to 6 V regardless of VIN voltage.
• Overcurrent protection
• Ceramic capacitors can be used ( CIN = 0.1F, COUT =1.0 F )
• Wide range voltage listing (Please see Output Voltage Accuracy at page 4 for
variety of the output voltage )
• Small package, SMV (SOT23-5) (SC-74A)
• RoHS compatible
TCR5SB15 Connection Diagram
TCR22-4
PDF/DataSheet Download
- Datasheet: TCR22-4
- File Size: 203451 KB
- Manufacturer: TECCOR [Teccor Electronics]
- Click here to Download
- ·TCR22-6
- TECCOR [Teccor Electronics]
- Sensitive SCRs
- 203451 KB

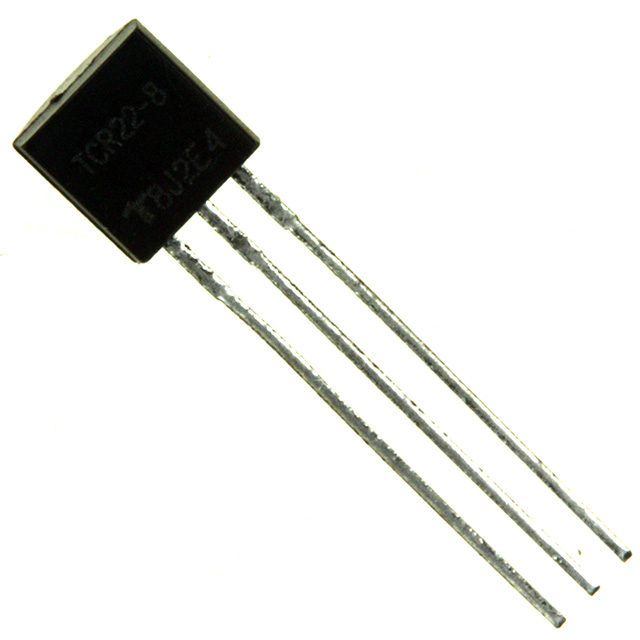

- ·TCR22-8
