Part Number: TD351
Description: TD351 is an advanced gate driver for IGBT and power MOSFET. Control and protection functions are inclu...
- Table of contents:
TD351
-
Suppliers
DataSheet
General Description
TD351 General Description
TD351 is an advanced gate driver for IGBT and power MOSFET. Control and protection functions are included and allow the design of high reliability systems Innovative active Miller clamp function avoids the need of negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver TD351 includes a two-level turn-off feature with adjustable level and delay. This function protects against excessive overvoltage at turn-off in case of overcurrent or short-circuit condition. Same delay is applied at turn-on to prevent pulse width distortion.
TD351 is compatible with both pulse transformer and optocoupler signals.
TD351 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VHL |
Maximum Supply Voltage (VH - VL) |
28 |
V |
|
Vout |
Voltage on OUT, CLAMP, LVOFF pins |
VL-0.3 to VH+0.3 |
V |
|
Vter |
Voltage on other pins (IN, CD, VREF) |
-0.3 to 7 |
V |
|
Pd |
Power dissipation |
500 |
mW |
|
Tstg |
Storage temperature |
-55 to 150 |
|
|
Tj |
Maximum Junction Temperature |
150 |
|
|
Rhja |
Thermal Resistance Junction-Ambient |
150 |
/W |
|
ESD |
Electrostatic discharge |
2 |
kV |
TD351 Features
· 1A sink / 0.75A source min. gate drive
· Active Miller clamp feature
· Adjustable and accurate two steps turn-off level and delay
· Input compatible with pulse transformer or optocoupler
· UVLO protection
· 2kV ESD protection
TD351 Typical Application
· 1200V 3-phase inverter
· Motor control systems
· UPS

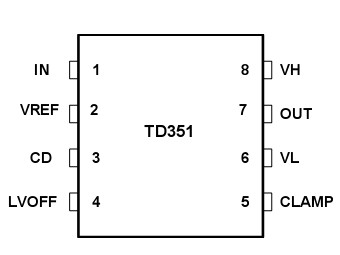

TD351 Connection Diagram
TD351
