Purchase TD352, In-stock TD352 From SeekIC.
Part Number: TD352
Description: TD352 is an advanced gate driver for IGBT and power MOSFET. Control and protection functions are inclu...
- Table of contents:
TD352
-
Suppliers
DataSheet
General Description
TD352 General Description
TD352 is an advanced gate driver for IGBT and power MOSFET. Control and protection functions are included and allow the design of high reliability systems.
Innovative active Miller clamp function avoids the need of negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver.
TD352 includes an adjustable turn-on delay. This feature can be used to implement reliable deadtime between high and low sides of a half bridge. External resistor and capacitor are used to provide accurate timing.
TD352 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VHL |
Maximum Supply Voltage (VH - VL) |
28 |
V |
|
Vter |
Voltage on other pins (IN, CD, VREF) |
-0.3 to 7 |
V |
|
Pd |
Power dissipation |
500 |
mW |
|
Tstg |
Storage temperature |
-55 to 150 |
°C |
|
Tj |
Maximum Junction Temperature |
150 |
°C |
|
Rhja |
Thermal Resistance Junction-Ambient |
150 |
°C/W |
|
ESD |
Electrostatic discharge |
2 |
kV |
TD352 Features
1A sink / 0.75A source min. gate drive
Active Miller clamp feature
Desaturation detection
Adjustable and accurate turn-on delay
UVLO protection
2kV ESD protection
Active Miller clamp feature
Desaturation detection
Adjustable and accurate turn-on delay
UVLO protection
2kV ESD protection
TD352 Typical Application
1200V 3-phase inverter
Motor control systems
UPS
Motor control systems
UPS

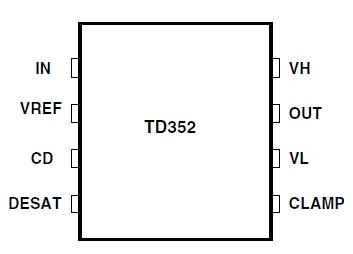

TD352 Connection Diagram
TD352
