TD62081AF

Series: -
Protocol: -
Mounting Type: Surface Mount
Type: Driver
Number of Drivers/Receivers: 8/0
Packaging: Tube
Supplier Device Package: 18-SOP
Manufacturer: Toshiba
Package / Case: 18-SOIC (0.276", 7.00mm Width)
Voltage - Supply: 30V


Features:

·Output current (single output)
  500 mA (Max.) (TD62081AP / F / AF series)
  400 mA (Max.) (TD62081CP series)
·High sustaining voltage output
  35 V (Min.) (TD62081F series)
  50 V (Min.) (TD62081AP / AF series)
  100 V (Min.) (TD62081CP series)
·Output clamp diodes
·Inputs compatible with various types of logic.
·Package type−AP, CP : DIP−18 pin
·Package type−F, AF : SOP−18 pin

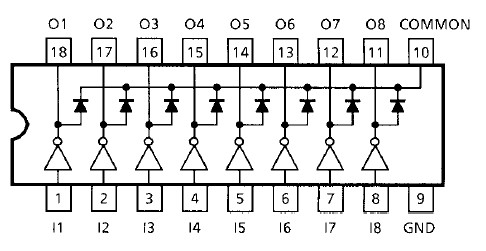

Pinout




Specifications

CHARACTERISTIC		SYMBOL	RATING	UNIT
Supply Voltage		VCC	−0.5~7.0	V
Output Sustaining Voltage	AP, AF	VCE (SUS)	−0.5~50	V
	CP		−0.5~100
	F		−0.5~35
Output Current		IOUT	500 400	mA / ch
	CP
Input Voltage		VIN (Note 1)	−0.5~30	V
Input Current		IIN (Note 2)	25	mA
Clamp Diode Reverse Voltage	AP, AF	VR	50	V
	CP		100
	F		35
Clamp Diode Forward Current		IF	500	°C
	CP		400
Power Dissipation	AP, CP	PD	1.47	W
	F, AF		0.96
Operating Temperature		Topr	−40~85	°C
Storage Temperature		Tstg	−55~150	°C

Note 1: Except TD62081AP / CP / F / AF
Note 2: Only TD62081AP / CP / F / AF


Description

The TD62081AF Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs.

All units feature integral clamp diodes for switching inductive loads.

Applications include relay, hammer, lamp and display (LED) drivers.


Parameters:

Technical/Catalog Information	TD62081AF
Vendor	Toshiba
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	8/0
Type	Driver
Voltage - Supply	30V
Package / Case	18-SOP
Packaging	Tube
Protocol	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TD62081AF TD62081AF
