Part Number: TD62107BP



MFG: TOS

Package Cooled: DIP/16





Urgent Purchase

TD62107BP Maximum Ratings

CHARACTERISTIC
SYMBOL
RATING
UNIT
Supply Voltage
VCC
−0.5~17
V
Output Sustaining Voltage

P
BP
F
VCE (SUS)
−0.5~45
−0.5~80
−0.5~35
V
Output Current
IOUT
750
mA
Input Voltage
VIN
−0.5~VCC + 0.5
V
Clamp Diode Reverse Voltage

P
BP
F
VR
45
80
35
V
Clamp Diode Forword Current

P, F
BP
IF
500
750
mA
Power Dissipation

P, BP
F
PD
2.7 (Note 1)
1.4 (Note 2)
W
Operating
Temperature
Topr
−40~85
°C
Storage Temperature
Tstg
−55~150
°C
Note 1: On Glass Epoxy PCB (50 × 50 × 1.6 mm Cu 50%)
Note 2: On Glass Epoxy PCB (60 × 30 × 1.6 mm Cu 30%)

TD62107BP Features

·Output current (single output) 750mA (MAX)
·High sustaining voltage output 80 V MIN. (TD62107BP) 45 V MIN. (TD62107P) 35 V MIN. (TD62107F)
·Output clamp diodes
·Enable inputs E1, E2
·Wide supply voltage range VCC = 4.75~17 V
·Input compatible with TTL and 5−V CMOS
·GND terminal = heat sink
·Package type−P, BP : DIP−16pin
·Package type−F : HSOP−16pin

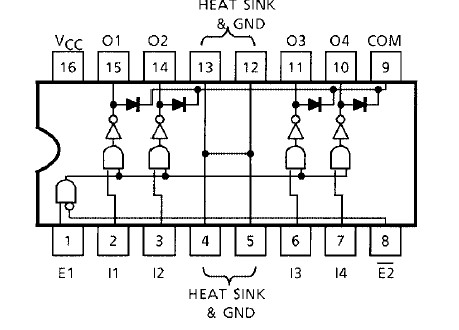

TD62107BP Connection Diagram

TD62107BP Connection Diagram

TD62107BP datasheet

TD62107BP
PDF/DataSheet Download
