TD62553S

Features: ·Output current (single output) 150 mA (Max)·High sustaining voltage output 25 V (Min)·Low saturation voltage VCE (sat) = 0.5 V @IOUT = 50 mA·Inputs compatible with various types of logic.·TD62551S : External·TD62553S : RIN = 2.7 kΩ ...... TTL, 5 V CMOS·TD62554S : RIN = 10.5 k͐...

product image

TD62553S Picture
See larger image
SeekIC No. : 004515929 Detail

TD62553S: Features: ·Output current (single output) 150 mA (Max)·High sustaining voltage output 25 V (Min)·Low saturation voltage VCE (sat) = 0.5 V @IOUT = 50 mA·Inputs compatible with various types of logic....

TD62553S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TD62553S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Output current (single output) 150 mA (Max)
·High sustaining voltage output 25 V (Min)
·Low saturation voltage VCE (sat) = 0.5 V @IOUT = 50 mA
·Inputs compatible with various types of logic.
·TD62551S : External
·TD62553S : RIN = 2.7 kΩ ...... TTL, 5 V CMOS
·TD62554S : RIN = 10.5 kΩ .... 6~15 V PMOS, CMOS
·TD62555S : RIN = 20 kΩ ....... 12~24 V PMOS
·Package type : SIP−9 pin


Pinout

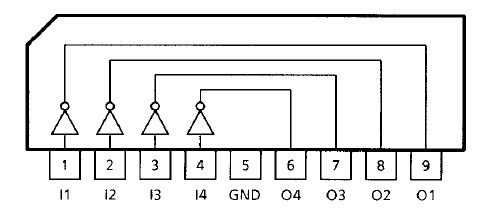

Connection Diagram


Specifications

CHARACTERISTIC
SYMBOL
RATING
UNIT
Collector−Emitter Voltage
VCEO
25
V
Collector−Base Voltage
VCBO
35
V
Collector Current
IC
150
mA / ch
Input Voltage
VIN (Note 1)
20
V
Input Current
IIN (Note 2)
10
mA
Power Dissipation
PD (Note 3)
0.75
W
Operating Temperature
Topr
−40~85
°C
Storage Temperature
Tstg
−55~150
°C
Note 1: Except TD62551S
Note 2: Only TD62551S
Note 3: Delated above 25°C in the proportion of 6.0mW / °C.
