MFG:TOS Package Cooled:N/A D/C:07/08+
MFG: TOS
Package Cooled: N/A
D/C: 07/08+
Description: The TD62783APG / AFWG Series are comprised of eight source current Transistor Array.These driv...
The TD62783APG / AFWG Series are comprised of eight source current Transistor Array.
These drivers are specifically designed for fluorescent display applications.
Applications include relay, hammer and lamp drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
| CHARACTERISTIC |
SYMBOL |
RATING |
UNIT | |
| Supply Voltage |
VCC |
50 |
V | |
| Output Current |
IOUT |
−500 |
mA / ch | |
| Input Voltage |
VIN (Note 1) |
15 |
V | |
|
VIN (Note 2) |
30 | |||
| Clamp Diode Reverse Voltage |
VR |
50 |
V | |
| Clamp Diode Forward Current |
IF |
500 |
mA | |
| Power Dissipation | APG |
PD |
1.47 |
W |
| AFWG |
0.92 / 1.31 (Note 3) | |||
| Operating Temperature |
Topr |
−40~85 |
°C | |
| Storage Temperature |
Tstg |
−55~150 |
°C | |
TD6.8M10
PDF/DataSheet Download
.JPG)

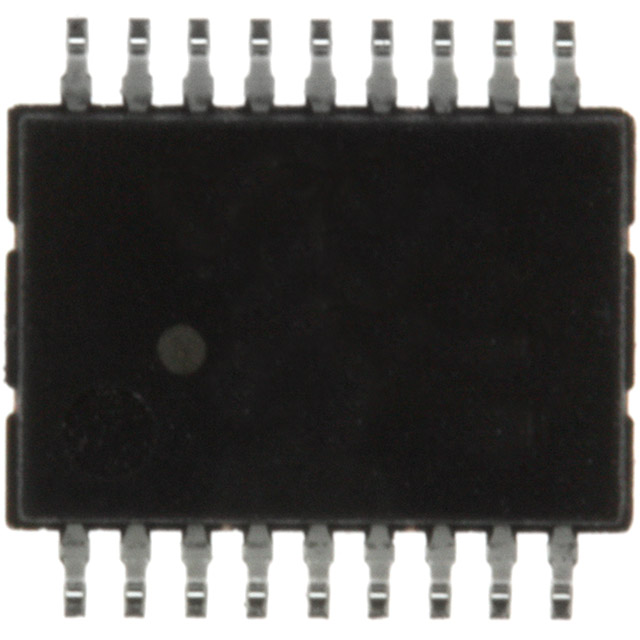

IC DRIVER DARL SOURCE 8CH 18SSOP
.JPG)

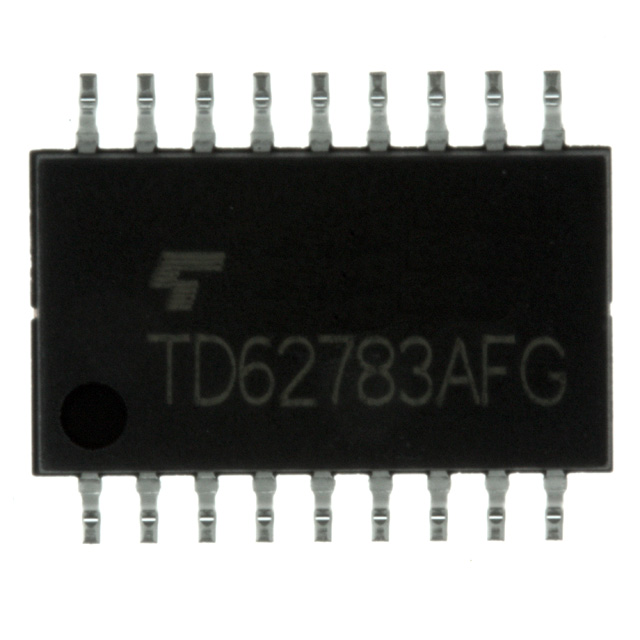

IC DRIVER DARL SOURCE 8CH 18-SOP
The TD62783AF is comprised of eight source current transistor array.Tese drivers are specifically designed for fluorescent display applications. Features of the TD62783AF are:(1)high output voltage:Type:Vout=50V(min.); (2)output current (single output)Iout=...
The TD62781AF is comprised of eight source current transistor array.Tese drivers are specifically designed for fluorescent display applications. Features of the TD62781AF are:(1)high output voltage:Type:Vout=60V(min.); (2)output current (single output)Iout=...
The TD62771AP is designed as a toshiba bipolar digital integrated circuit high voltage source driver which is comprised of seven source current transistor array.TD62771AP has six features. (1)High output voltage which would be min 60V. (2)Output current (sin...
