TDA1175P

Video ICs Low Noise Vert Defl

product image

TDA1175P Picture
See larger image
SeekIC No. : 00475908 Detail

TDA1175P: Video ICs Low Noise Vert Defl

TDA1175P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1175P
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Supply Voltage : 35 V Maximum Operating Temperature : + 150 C
Package / Case : PDIP-16 Packaging : Tube

Description

Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Operating Supply Voltage : 35 V
Package / Case : PDIP-16


Features:

·COMPLETE VERTICAL DEFLECTION SYSTEM
·LOWNOISE
·SUITABLE FOR HIGH DEFINITION
·MONITORS ESD PROTECTED


Pinout

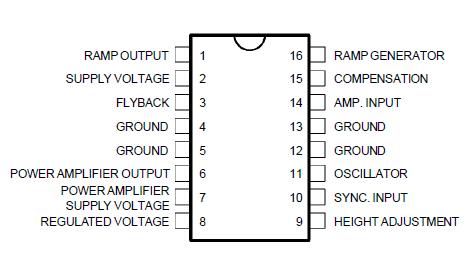

Connection Diagram




Specifications

Symbol Parameter Value Unit
VS Supply Voltage at Pin 2 35 V
V6, V7 Flyback Peak Voltage 60 V
V14 Power Amplifier Input Voltage + 10
0.5		 V
V
Io Output Peak Current (non repetitive) at t = 2msec 2 A
Io Output Peak Current at f = 50Hz t 3 10msec 2.5 A
Io Output Peak Current at f = 50Hz t > 10msec 1.5 A
I3 Pin 3 DC Current at V4 < V2 100 mA
I3 Pin 3 Peak to Peak Flyback Current for f = 50Hz, tfly 3 1.5msec 1.8 A
I8 Pin 8 Current ± 20 mA
Ptot Power Dissipation : at Tab = 90°C
at Tamb = 80°C (free air)		 4.3
1		 W
W
Tstg, Tj Storage and Junction Temperature 40, + 150 °C



Description

The TDA1175Pis a monolithic integrated circuit in POWERDIP16 plastic package. It is intended for use in black and white and colour TV receivers. Low-noise makes this device particularly suitable for use in monitors.

The functions incorporated are : synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, voltage regulator.
