Product Details

Description



Features:

` Very high output power, operating from a single low supply voltage
` Low power dissipation, when used for music signals
` Switches to low output power at too high case temperatures
` Few external components
` Fixed gain
` Differential inputs with high common mode rejection
` Mode select pin (on, mute and standby)
` Status I/O pin (class-H, class-B and fast mute)
` All switching levels with hysteresis
` Diagnostic pin with information about:
  Dynamic Distortion Detector (DDD)
  Any short-circuit at outputs
  Open load detector
  Temperature protection.
` No switch-on or switch-off plops
` Fast mute on supply voltage drops
` Quick start option (e.g. car-telephony/navigation)
` Low (delta) offset voltage at the outputs
` Load dump protection
` Short-circuit safe to ground, supply voltage and across the load
` Low power dissipation in any short-circuit condition
` Protected against electrostatic discharge
` Thermally protected
` Flexible leads.

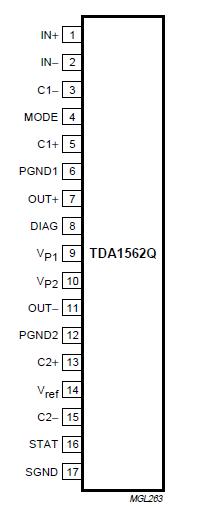

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage operating - 18 V
non-operating - 30 V
load dump protection; tr 2.5 ms;T = 50 ms - 45 V
IOSM non-repetitive peak output current - 10 A
repetitive peak output current - 8 A
Vsc short-circuit safe voltage - 18 V
Tstg storage temperature   -55 +150
Tamb ambient temperature   -40 -
Tj junction temperature note 1 - 150
Ptot total power dissipation - 60 W

Note
1. Tj is a theoretical temperature which is based on a simplified representation of the thermal behaviour of the device.
Tj = Tc + P * Rth(j-c), where Rth(j-c) is a fixed value to be used for the calculation of Tj. The rating for Tj limits the allowable combinations of power dissipation P and case temperature Tc (in accordance with IEC 747-1).




Description

The TDA1562Q is a monolithic integrated 70 W/4 W Bridge-Tied Load (BTL) class-H high efficiency power amplifier in a 17-lead DIL-bent-SIL plastic power package.

The device can be used for car audio systems (e.g. car, radio and boosters) as well as mains fed applications (e.g. midi/mini audio combinations and TV sound).
